Description
Displacment in cm3/rev : 3.15
Inlet : BSPP
Outlet : BSPP
Flow @ 1500 rpm in l/min : 4.44
Flow @ 3500 rpm in l/min : 10.36
Nominal Pressure in Bar :250

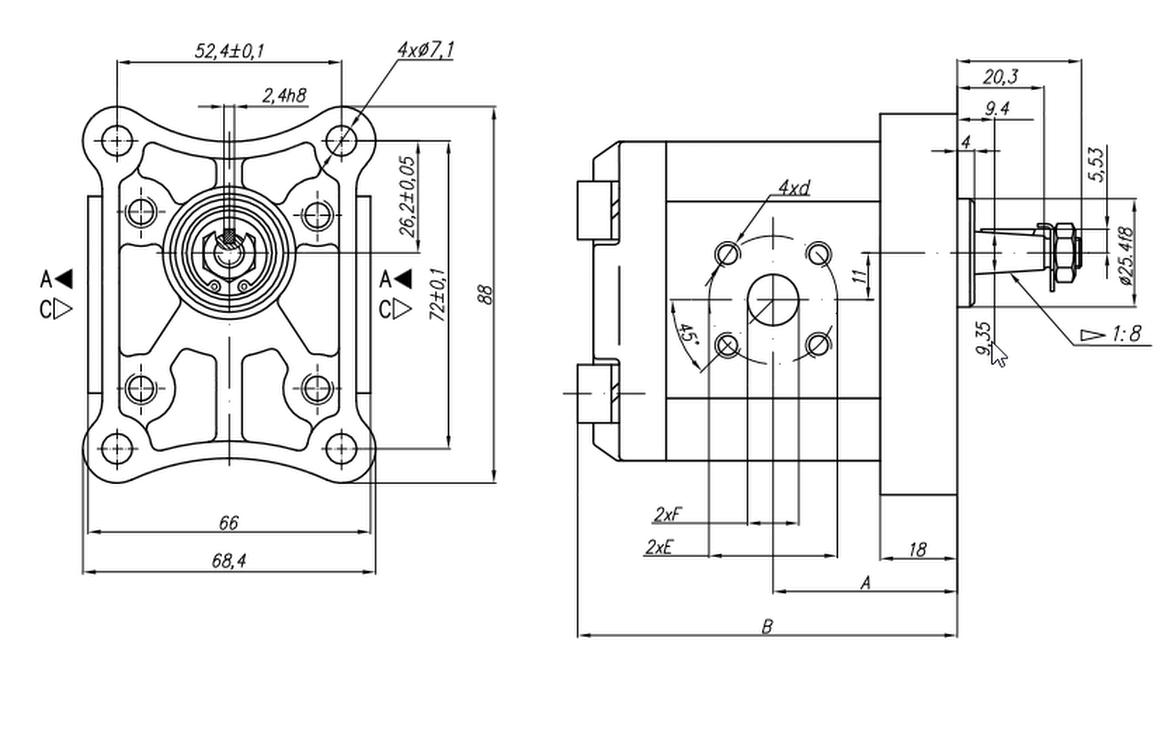

Dimensions :
A in mm : 43.5
B in mm : 89.8
Shaft 1:8 tapered
Fluid temperature range: -10 oC … +80 oC
Working fluid: Mineral based hydraulic oil
Viscosity: 10-100 cSt (46 cSt mineral based hydraulic oil is recommended, may vary in different climates)
Filtration: 25 µm
