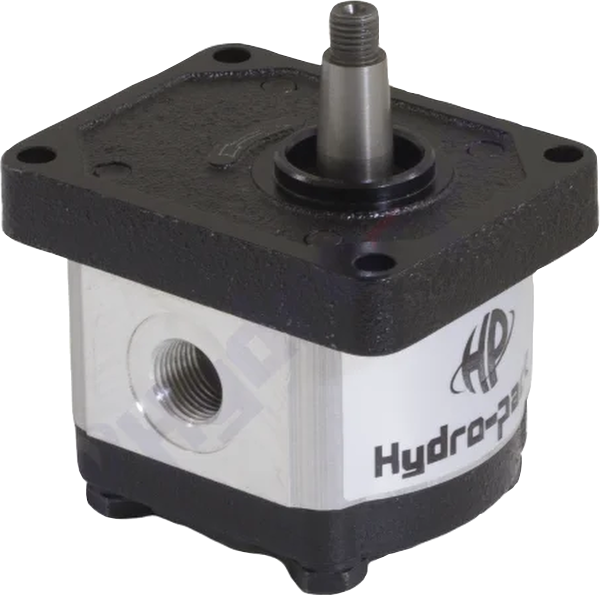

Description
Displacment in cm3/rev : 25
Inlet : BSPP G3/4
Outlet : BSPP G1/2
Flow @ 1500 rpm in l/min : 36
Flow @ 3500 rpm in l/min : 48
Nominal Pressure in Bar :250

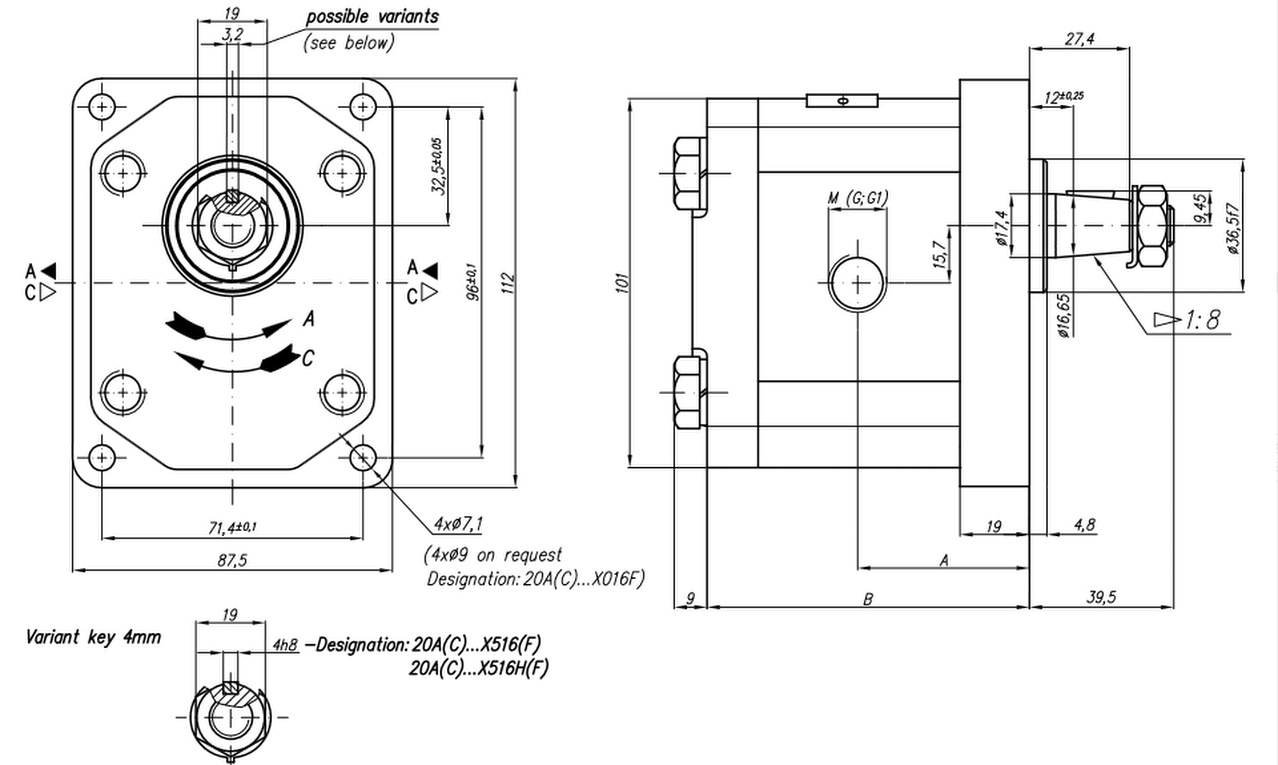

Dimensions :
A in mm : 59.2
B in mm : 113.4
Shaft 1:8 tapered
Fluid temperature range: -10 oC … +80 oC
Working fluid: Mineral based hydraulic oil
Viscosity: 10-100 cSt (46 cSt mineral based hydraulic oil is recommended, may vary in different climates)
Filtration: 25 µm
