Description
Technical Specifications

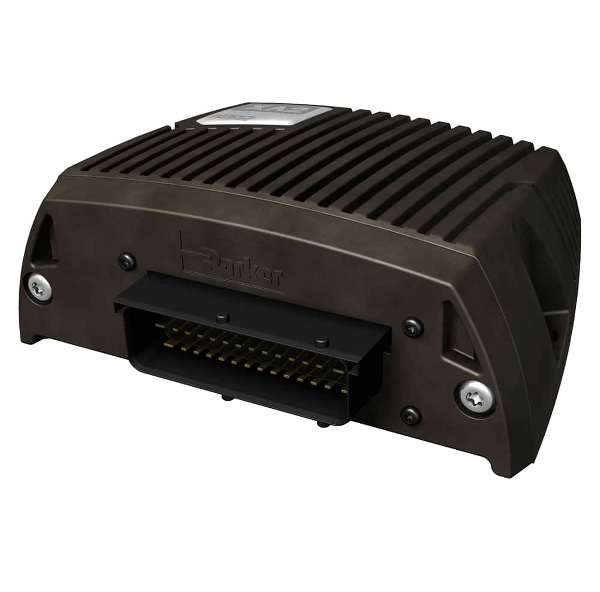

Model Number: IQAN-XA2
Power Supply Voltage: 9-32 VDC
Maximum Operating Temperature: 70 °C
Minimum Operating Temperature: -30 °C
Number of Inputs: 8 (20)
Number of Outputs: 12
Ingress Protection Rating: 65
Specifications Met: 2004/108/EC
Electrical Connection: AMP/Tyco power timer
Output Current Rating: 1800 mA
Housing Material: Aluminum
Industry: Agriculture, Construction, Forestry, Material Handling, Specialty, Transportation
Controller Type: Slave/expansion module
