Description

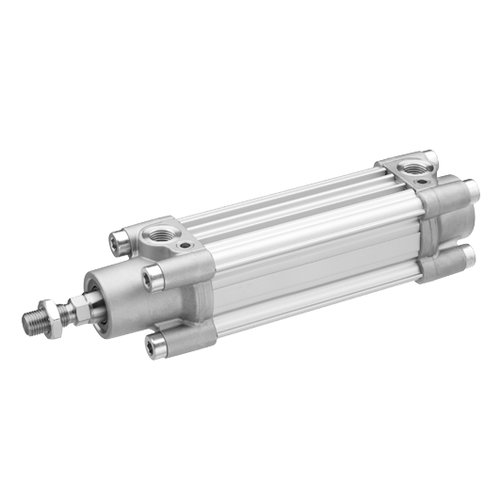

Pneumatic Cylinder Rexroth Adventics
Technical Data
Piston Diameter : 63 mm
Stroke : 100 mm
Threaded port size : G3/8
Piston rod thread : M16 x 1.5
Theoritical Force at 6 bars
Pull stroke N : 1765
push stroke N : 1960
Cushioning lenght mm : 16.5
Standard ISO 15552
Working pressure 1.5–10 bar
Ambient temperature range –20 °C to +80 °C
MediumCompressed air, lubricated or non-lubricated
Materials
Piston rod Stainless steel, smooth-rolled
Cylinder barrel Anodized aluminium
End covers Die-cast aluminium
