Description
Generator controller hybrid standalone

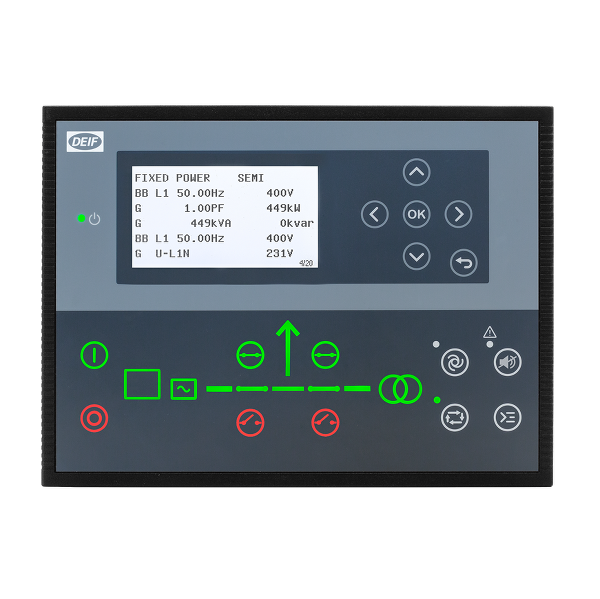

Advanced Genset Controller
The AGC 150 Hybrid comes with all the necessary functions for protection and control of a hybrid installation with PV and genset. The controller is ideal for small and medium PV plants with up to 16 inverters, e.g. rooftop PV plants.
Compatible with major inverter manufacturer. Consult us for more details
Applications:
AGC 150 is a compact all-in-one unit designed for the following applications:
Standard plant modes Applications
Island mode Power plant with synchronising generators or a stand-alone generator. It can also be used in critical power plants.
Automatic Mains Failure Critical power/emergency standby plants, black start generator.
Fixed power Power plant with fixed kW set point (including building load).
Peak shaving Power plant where generator supplies peak load demand paralleled to the mains.
Load take-over Plant mode where the load is moved from mains to generator, e.g. peak demand periods or periods with risk of power outages.
Mains power export Power plant with fixed kW set point (excluding building load).
Dimensions and weight
Length: 233.3 mm (9.16 in)
Height: 173.3 mm (6.82 in)
Depth: 44.7 mm (1.76 in)
Panel cutout
Length: 218.5 mm (8.60 in)
Height: 158.5 mm (6.24 in)
Tolerance: ± 0.3 mm (0.01 in)
Max. panel thickness 4.5 mm (0.18 in)
Weight 0.79 kg
