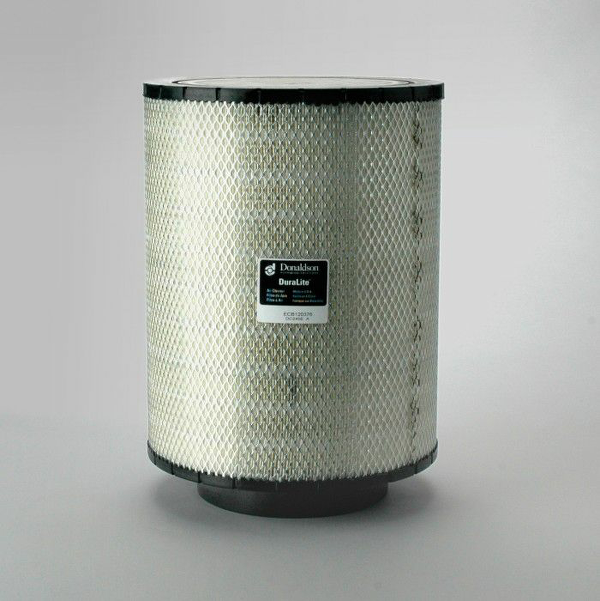

Why Choose Donaldson DuraLite™ Air Cleaners?
Rugged, lightweight, self-supporting, and completely disposable combination air cleaner and filter.
• Function well under severe pulsation conditions, particularly two- and three-cylinder engines.
• Vibration-resistant media is secured into molded housings of rugged ABS plastic—so they don’t fall apart as other designs might.
• Easy to install, durable, and reliable.
• Completely disposable — acceptable for normal trash pick-up (DuraLite should not be incinerated).
Attributes
Outlet Diameter 200 mm (7.87 inch)
Body Diameter Maximum 317.5 mm (12.50 inch)
Body Length 400 mm (15.75 inch)
Efficiency Test Std ISO 5011
Rated Flow LR 43.9 m³/min (1550 cfm)
Rated Flow MR 52 m³/min (1836 cfm)
Rated Flow HR 60 m³/min (2119 cfm)
Restriction LR 102 mm H2O (4.02 inch H2O)
Restriction MR 152 mm H2O (5.98 inch H2O)
Restriction HR 203 mm H2O (7.99 inch H2O)
Family ECB
Primary Application DETROIT DIESEL 0180941002
Type Primary
Style Round
Brand DuraLite™
