Description

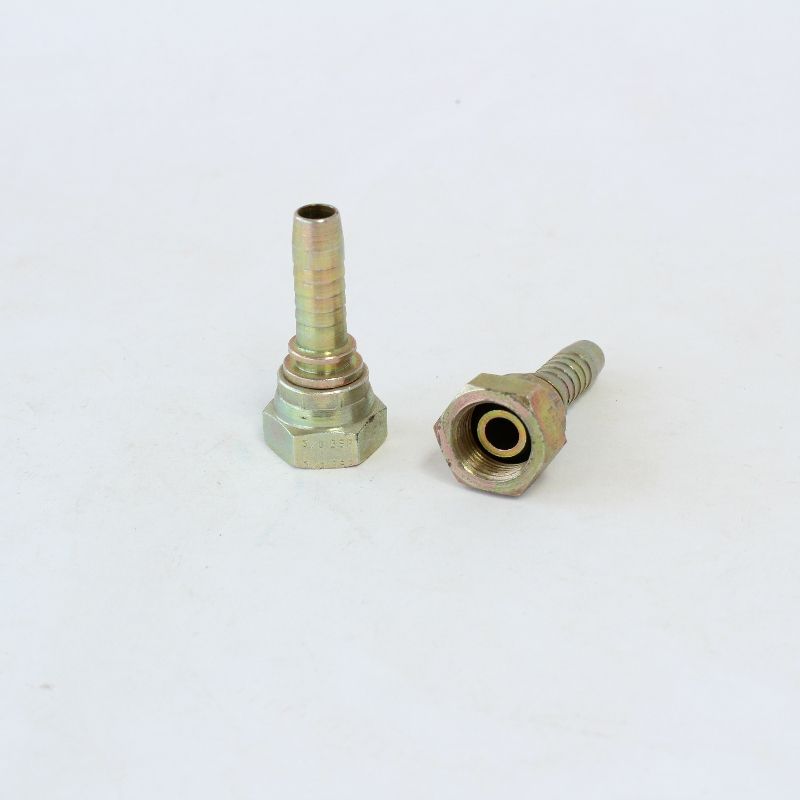

Hydraulic Fitting 1/4 BSP
TWO PIECE SWAGED FITTINGS UNIVERSAL SERIES FOR WIRE BRAIDED AND 4 SPIRAL HYDRAULIC HOSES
BSP O-RING FEMALE SWIVEL 60° CONE Crimped NUTS

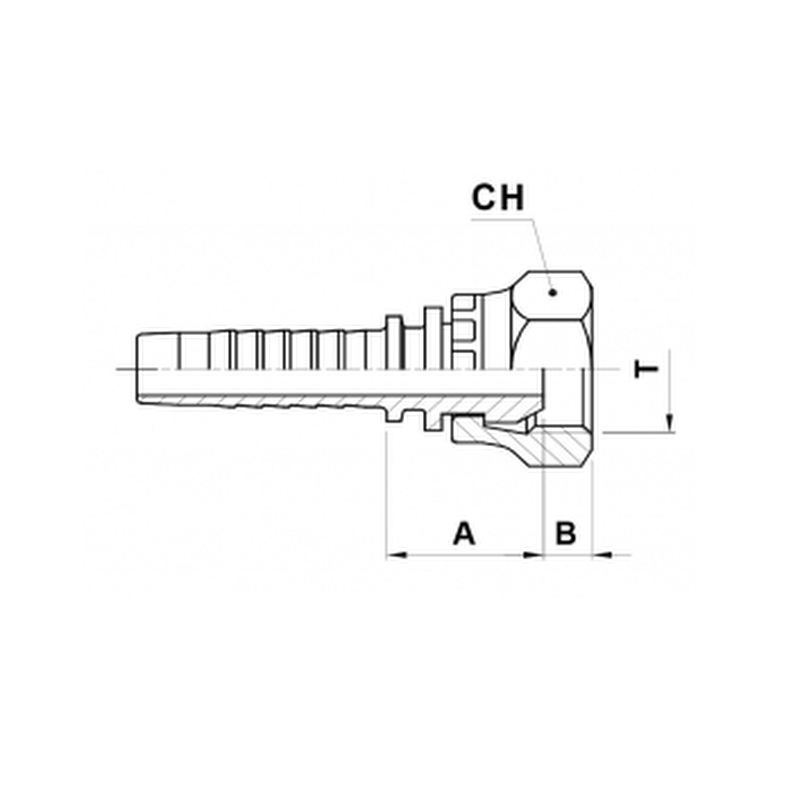

Dimensions :
Hose Bore DN 6 – 1/4 Inch – Size 04
T : 1/4 Inch – 19
A : 17.5 mm
B : 4 mm
CH : 19 mm
