Description
TWO PIECE SWAGED FITTINGS UNIVERSAL SERIES FOR WIRE BRAIDED AND 4 SPIRAL HYDRAULIC HOSES

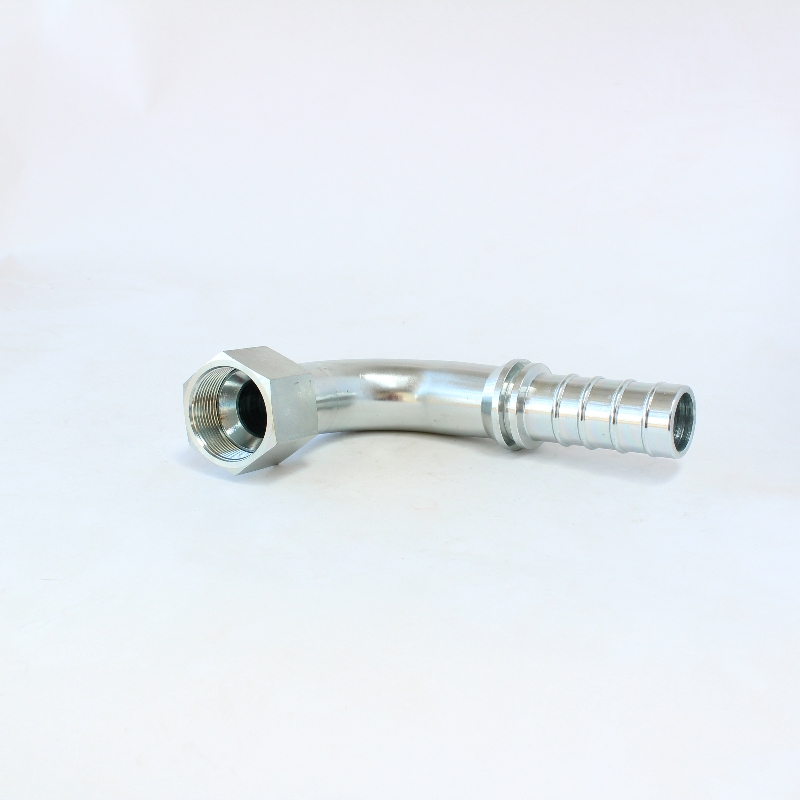

JIC 37° FEMALE SWIVEL – 90° ELBOW W

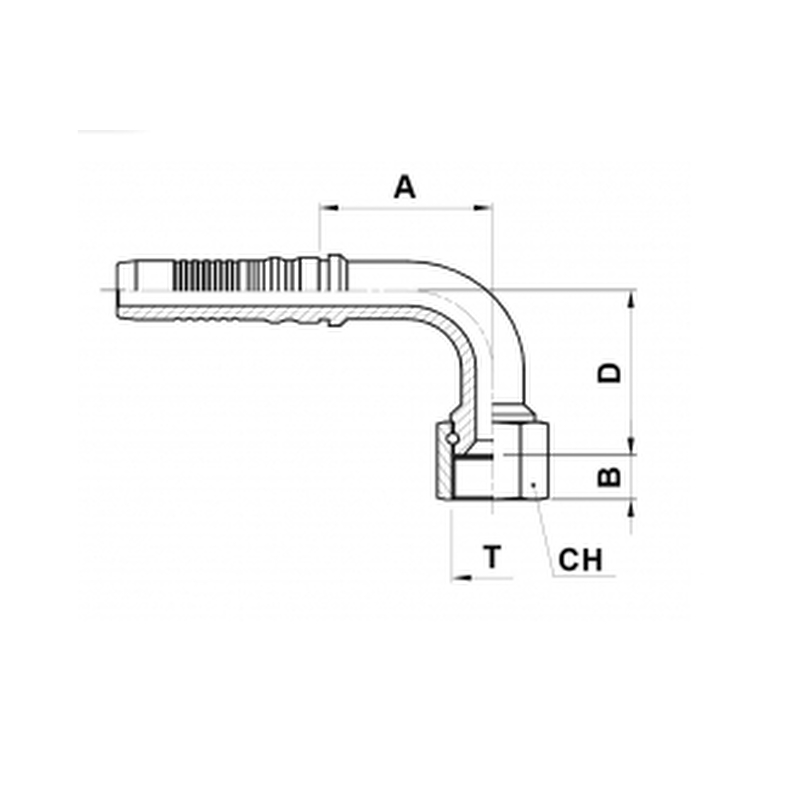

Dimensions :
Hose Bore DN 31 – 1.1/4 Inch – Size 20
T : 1.5/8 Inch – 12
A : 86.5 mm
B : 16 mm
D : 77 mm
CH : 50 mm
