Description

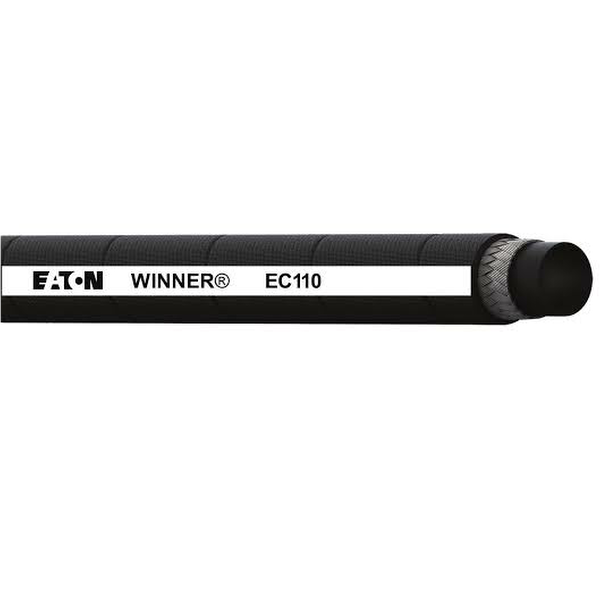

Hydraulic Hose
Eaton Winner Hoses
Type : 1 Wires
Size : 3/4 Inch
Hose ID mm/inch : 19.0 – 0.75
Hose OD mm/inch : 28.5 – 1.12
Working Pressure Bar/ PSI : 105/1525
Min. Burst Pressure Bar/PSI : 420 – 6100
Min Bend radius mm/inch : 240 – 9.45
Weight kg/m – lbs/ft : 0.59 – 0.40
Construction
1 – Synthetic rubber tube;
2 – One high tensile steel wire braids;
3 -Synthetic rubber cover, MSHA flame retardant approved.
Application
Hydraulic oils, both mineral and biological
Polyglycol base oils, water/oil emulsions and water based fluid.
Temperature range Hydraulic oils: -40°C to +100°C (-40°F to +212°F)
