Description

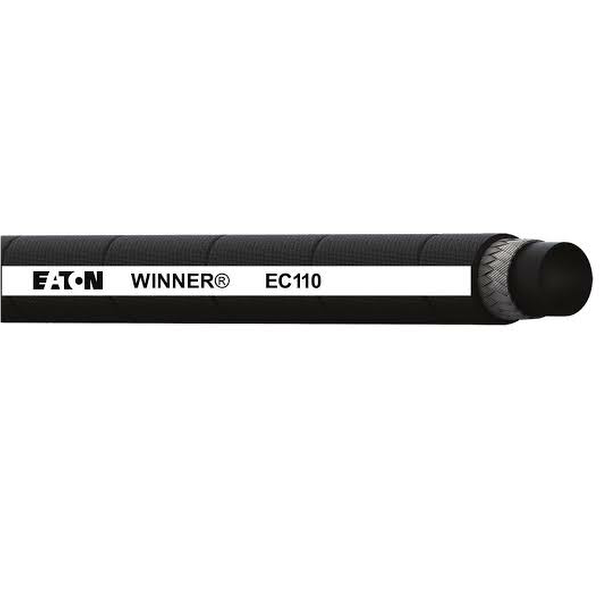

Hydraulic Hose
Eaton Winner Hoses
Type : 1 Wires
Size : 1 Inch
Hose ID mm/inch : 25.4 – 1
Hose OD mm/inch : 36.6 – 1.44
Working Pressure Bar/ PSI : 88/1275
Min. Burst Pressure Bar/PSI : 352 – 5100
Min Bend radius mm/inch : 300 – 11.81
Weight kg/m – lbs/ft : 0.87 – 0.58
Construction
1 – Synthetic rubber tube;
2 – One high tensile steel wire braids;
3 -Synthetic rubber cover, MSHA flame retardant approved.
Application
Hydraulic oils, both mineral and biological
Polyglycol base oils, water/oil emulsions and water based fluid.
Temperature range Hydraulic oils: -40°C to +100°C (-40°F to +212°F)
