Description

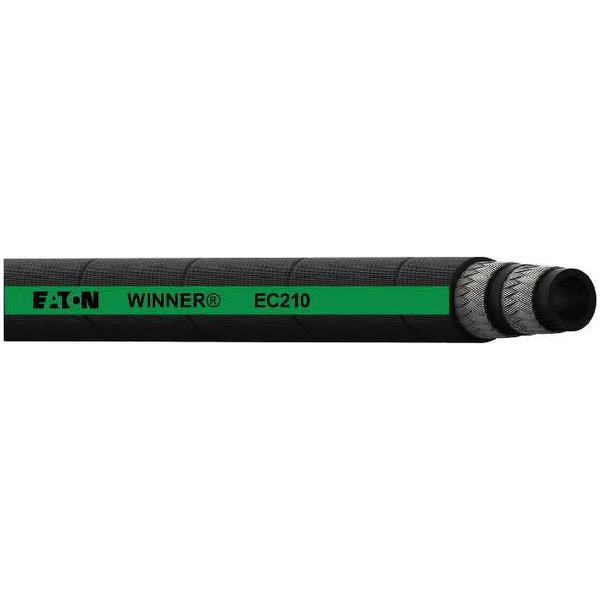

Hydraulic Hose
Eaton Winner Hoses
Type : 2 Wires
Size : 1/4 Inch
Hose ID mm/inch : 6.4 – 0.25
Hose OD mm/inch : 15.7 – 0.62
Working Pressure Bar/ PSI : 400/5800
Min. Burst Pressure Bar/PSI : 1600 – 232000
Min Bend radius mm/inch : 100 – 3.94
Weight kg/m – lbs/ft : 0.38 – 0.26
Construction
1 – Synthetic rubber tube;
2 – One high tensile steel wire braids;
3 -Synthetic rubber cover, MSHA flame retardant approved.
Application
Hydraulic oils, both mineral and biological
Polyglycol base oils, water/oil emulsions and water based fluid.
Temperature range Hydraulic oils: -40°C to +100°C (-40°F to +212°F)
