Description

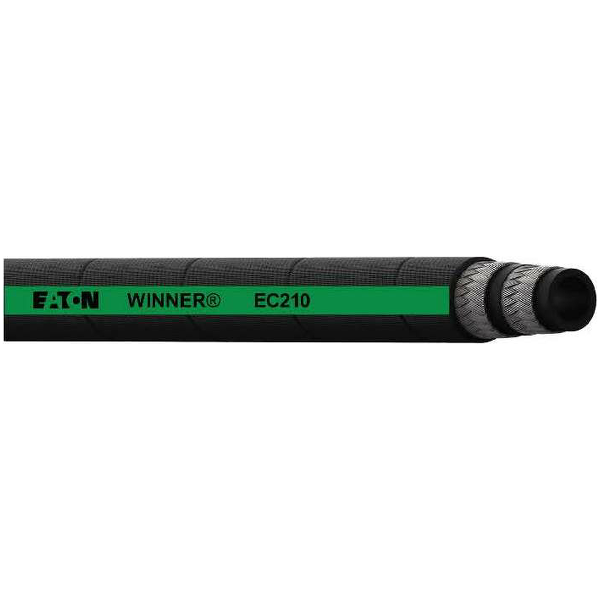

Hydraulic Hose
Eaton Winner Hoses
Type : 2 Wires
Size : 5/8 Inch
Hose ID mm/inch : 15.9 – 0.62
Hose OD mm/inch : 26.2 – 1.03
Working Pressure Bar/ PSI : 250/3650
Min. Burst Pressure Bar/PSI : 1000 – 14600
Min Bend radius mm/inch : 200 – 7.87
Weight kg/m – lbs/ft : 0.75 – 0.50
Construction
1 – Synthetic rubber tube;
2 – One high tensile steel wire braids;
3 -Synthetic rubber cover, MSHA flame retardant approved.
Application
Hydraulic oils, both mineral and biological
Polyglycol base oils, water/oil emulsions and water based fluid.
Temperature range Hydraulic oils: -40°C to +100°C (-40°F to +212°F)
