Description

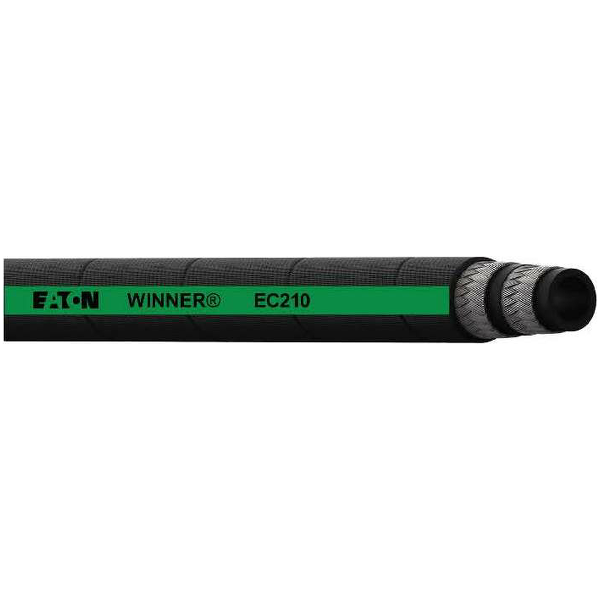

Hydraulic Hose
Eaton Winner Hoses
Type : 2 Wires
Size : 1.1/4 Inch
Hose ID mm/inch : 31.8 – 1.25
Hose OD mm/inch : 49.5 – 1.95
Working Pressure Bar/ PSI : 125/1800
Min. Burst Pressure Bar/PSI : 500 – 7200
Min Bend radius mm/inch : 420 – 16.54
Weight kg/m – lbs/ft : 1.89 – 1.27
Construction
1 – Synthetic rubber tube;
2 – One high tensile steel wire braids;
3 -Synthetic rubber cover, MSHA flame retardant approved.
Application
Hydraulic oils, both mineral and biological
Polyglycol base oils, water/oil emulsions and water based fluid.
Temperature range Hydraulic oils: -40°C to +100°C (-40°F to +212°F)
