Description

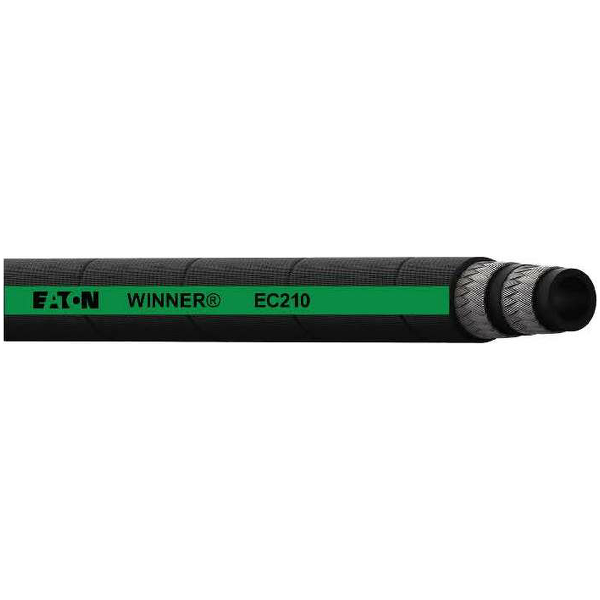

Hydraulic Hose
Eaton Winner Hoses
Type : 2 Wires
Size : 2 Inch
Hose ID mm/inch : 50.8 – 2
Hose OD mm/inch : 68.6 – 2.7
Working Pressure Bar/ PSI : 80/1150
Min. Burst Pressure Bar/PSI : 320 – 4600
Min Bend radius mm/inch : 630 – 24.80
Weight kg/m – lbs/ft : 2.76 – 1.85
Construction
1 – Synthetic rubber tube;
2 – One high tensile steel wire braids;
3 -Synthetic rubber cover, MSHA flame retardant approved.
Application
Hydraulic oils, both mineral and biological
Polyglycol base oils, water/oil emulsions and water based fluid.
Temperature range Hydraulic oils: -40°C to +100°C (-40°F to +212°F)
