Description

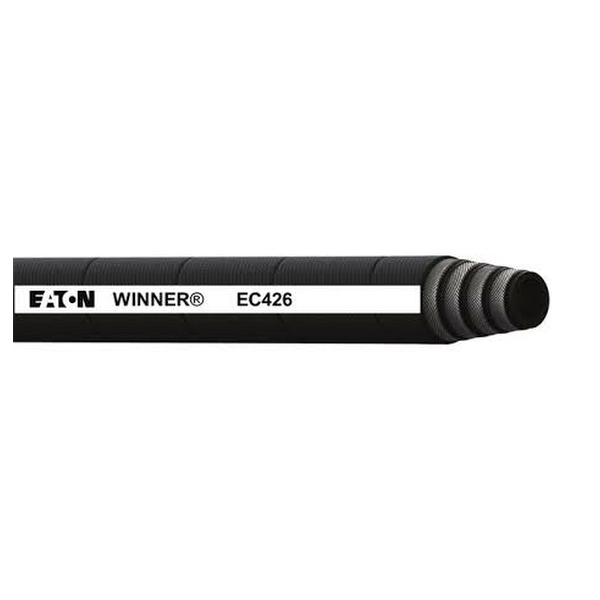

Hydraulic Hose
Eaton Winner Hoses
Type : 4 Wires
Size : 3/8 Inch
Hose ID mm/inch : 9.5 – 0.38
Hose OD mm/inch : 20.9 – 0.82
Working Pressure Bar/ PSI : 445/6450
Min. Burst Pressure Bar/PSI : 1780 – 25800
Min Bend radius mm/inch : 180 – 7.09
Weight kg/m – lbs/ft : 0.74 – 0.50
Construction
1 – Synthetic rubber tube;
2 – One high tensile steel wire braids;
3 -Synthetic rubber cover, MSHA flame retardant approved.
Application
Hydraulic oils, both mineral and biological
Polyglycol base oils, water/oil emulsions and water based fluid.
Temperature range Hydraulic oils: -40°C to +100°C (-40°F to +212°F)
