Description

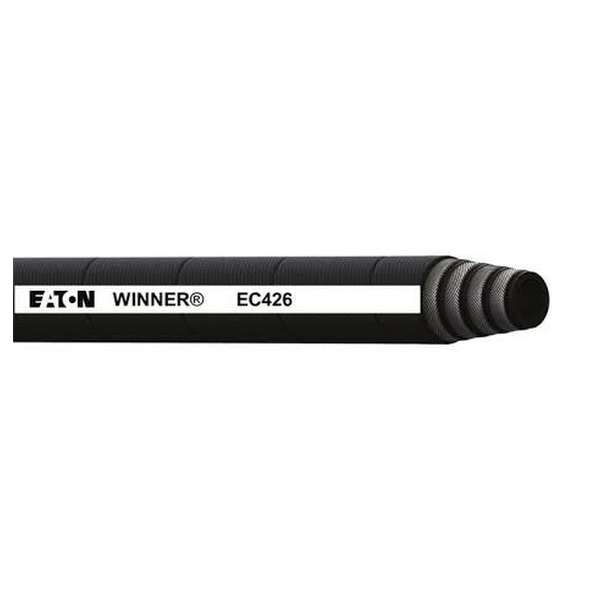

Hydraulic Hose
Eaton Winner Hoses
Type : 4 Wires
Size : 3/4 Inch
Hose ID mm/inch : 19 – 0.75
Hose OD mm/inch : 33 – 1.3
Working Pressure Bar/ PSI : 350/5100
Min. Burst Pressure Bar/PSI : 1400 – 20400
Min Bend radius mm/inch : 300 – 11.81
Weight kg/m – lbs/ft : 1.47 – 0.99
Construction
1 – Synthetic rubber tube;
2 – One high tensile steel wire braids;
3 -Synthetic rubber cover, MSHA flame retardant approved.
Application
Hydraulic oils, both mineral and biological
Polyglycol base oils, water/oil emulsions and water based fluid.
Temperature range Hydraulic oils: -40°C to +100°C (-40°F to +212°F)
