Description

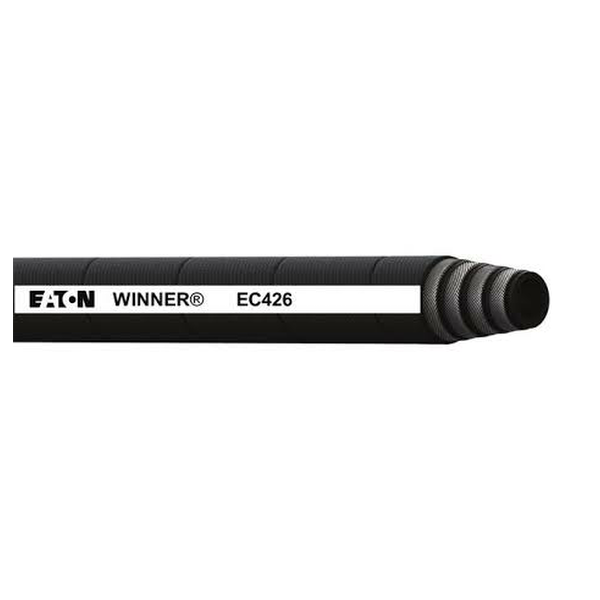

Hydraulic Hose
Eaton Winner Hoses
Type : 4 Wires
Size : 1 Inch
Hose ID mm/inch : 25.4 – 1
Hose OD mm/inch : 40.9 – 1.61
Working Pressure Bar/ PSI : 280/4050
Min. Burst Pressure Bar/PSI : 1120 – 16200
Min Bend radius mm/inch : 340 – 13.39
Weight kg/m – lbs/ft : 1.90 – 1.28
Construction
1 – Synthetic rubber tube;
2 – One high tensile steel wire braids;
3 -Synthetic rubber cover, MSHA flame retardant approved.
Application
Hydraulic oils, both mineral and biological
Polyglycol base oils, water/oil emulsions and water based fluid.
Temperature range Hydraulic oils: -40°C to +100°C (-40°F to +212°F)
