Description
General specifications

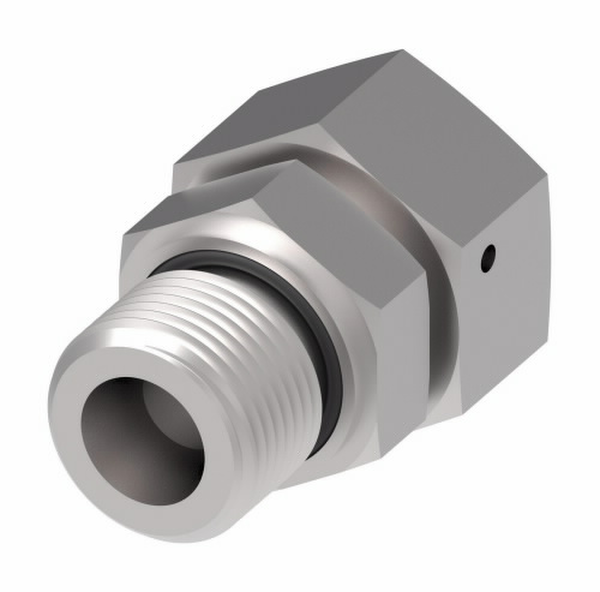

Product NamevDanfoss Waltech Tube Fittings
Catalog Number WAL063663
Model Code EGESD 10 LR-WD A4GS
Product Length/Depth 39.5 mm
Product Height 19 mm
Product Width 19 mm
Product Weight .058 kg
Product specifications
Torque 45Nm
Item type BSPP Male/Metric female Straight
End Size 2 M16X1.5
Product material Carbon Steel
Thread sealant No
Working temperature – min -40 °C
Working pressure 500 bar
End Size 1 : 1/4 Inch
Finish/plating Guardian Seal Angle (shape)
Straight Hex Size 1 : 19 mm
End gender 2 Female
Fluid compatibility Commercial Hydraulic Oils
Thread Size 1 : G1/4
Thread Size 2 :M16X1.5
Tube OD 2 : 10 mm
Tube OD 1 : 10 mm
End type 2 Metric
End gender 1 Male
End type 1 BSPP
Hex Size 2 19 mm
Working temperature – max 120 °C
