Description

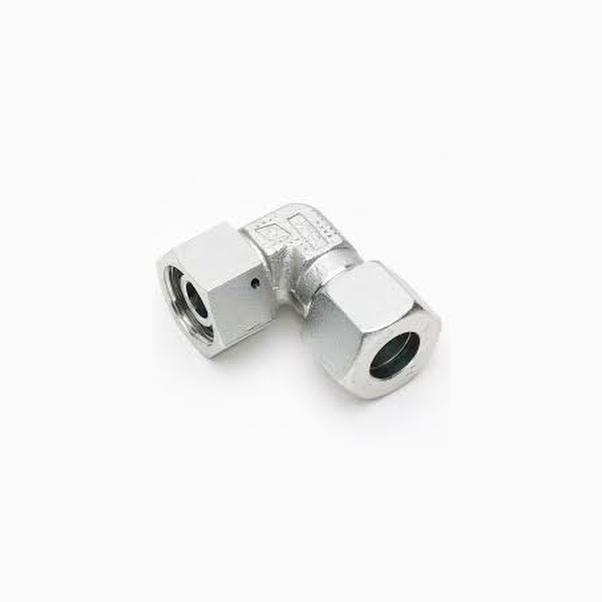

Hydraulic Adjustable Male stud Elbow 90 degrees – 6L
Specifications
For tube fitting size (light series) : 6L
With taper 24° and o-ring NBR
Nominal pressure up to 500bar

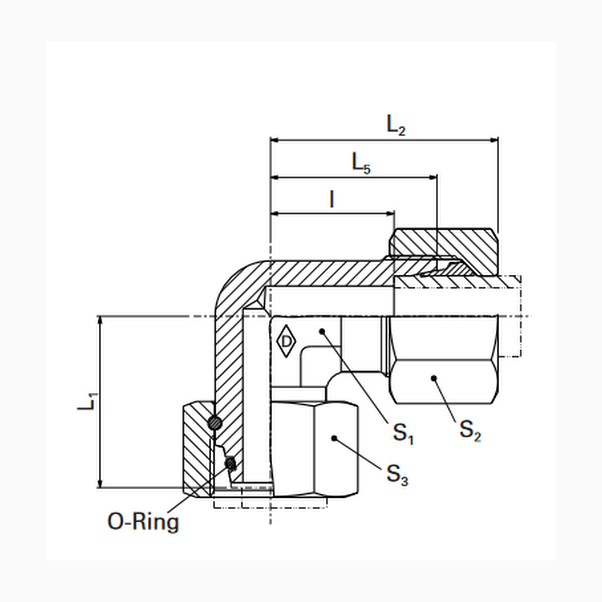

Dimensions:
L1 in mm : 26
L2 in mm : 29
L5 in mm : 21
I in mm : 14
S1 in mm : 12
S2 in mm : 14
S3 in mm : 17
O_Ring size : 4.5 x 1.5
