Description

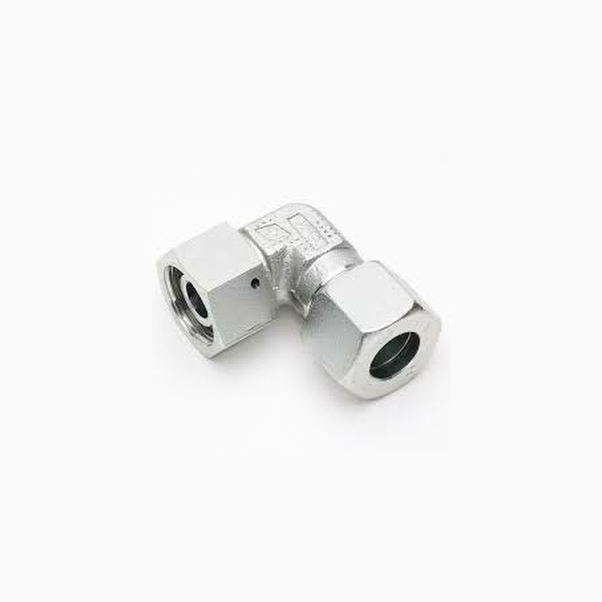

Hydraulic Adjustable Male stud Elbow 90 degrees – 12L
Specifications
For tube fitting size (light series) : 12L
With taper 24° and o-ring NBR
Nominal pressure up to 400bar

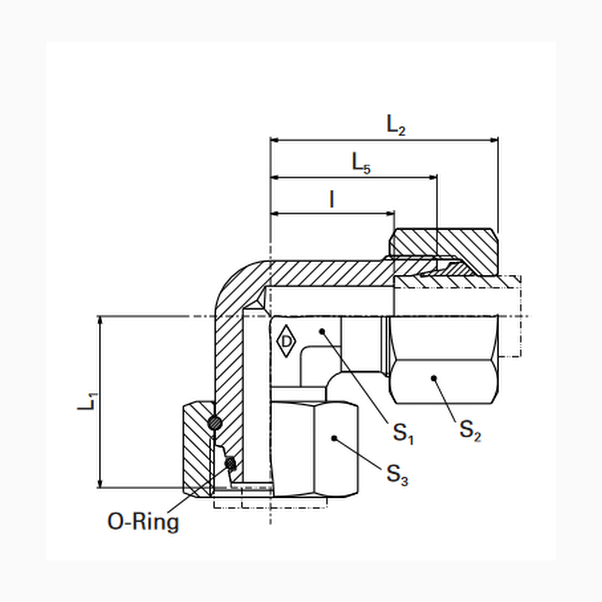

Dimensions:
L1 in mm : 29.5
L2 in mm : 32
L5 in mm : 24
I in mm : 17
S1 in mm : 17
S2 in mm : 22
S3 in mm : 22
O_Ring size : 10 x 1.5
