Description

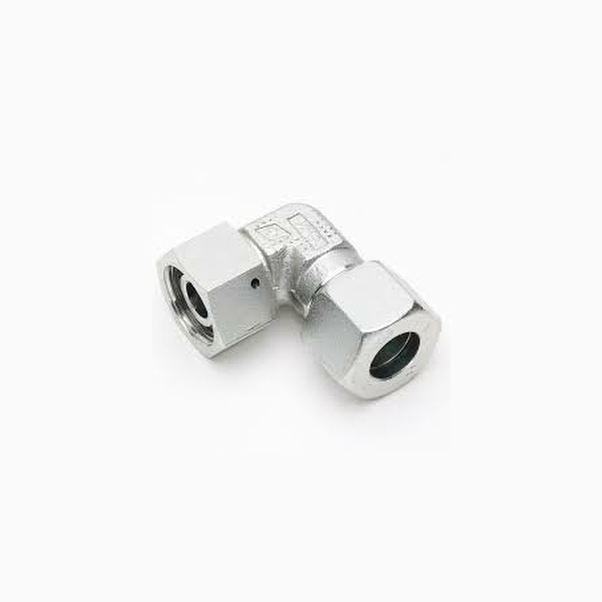

Hydraulic Adjustable Male stud Elbow 90 degrees – 12S
Specifications
For tube fitting size (light series) : 12S
With taper 24° and o-ring NBR
Nominal pressure up to 630bar

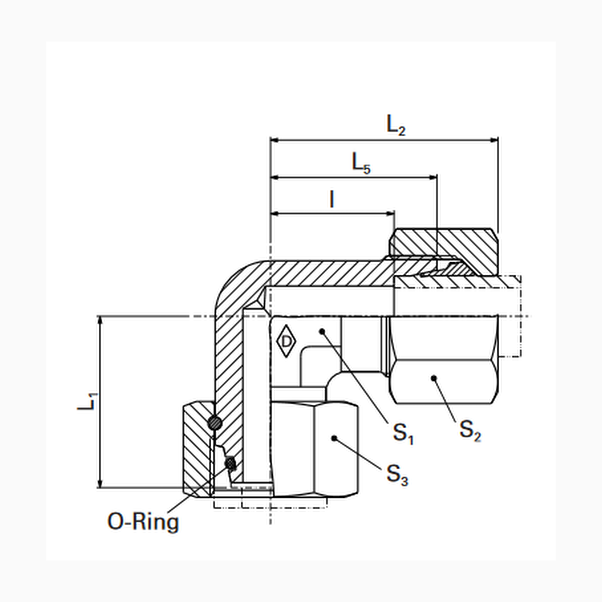

Dimensions:
L1 in mm : 31
L2 in mm : 38
L5 in mm : 29
I in mm : 21.5
S1 in mm : 22
S2 in mm : 24
S3 in mm : 24
O_Ring size : 10 x 1.5
