Description
Hydraulic Adjustable Male stud Elbow 90 degrees – 15L
Specifications
For tube fitting size (light series) : 15L
With taper 24° and o-ring NBR
Nominal pressure up to 400bar

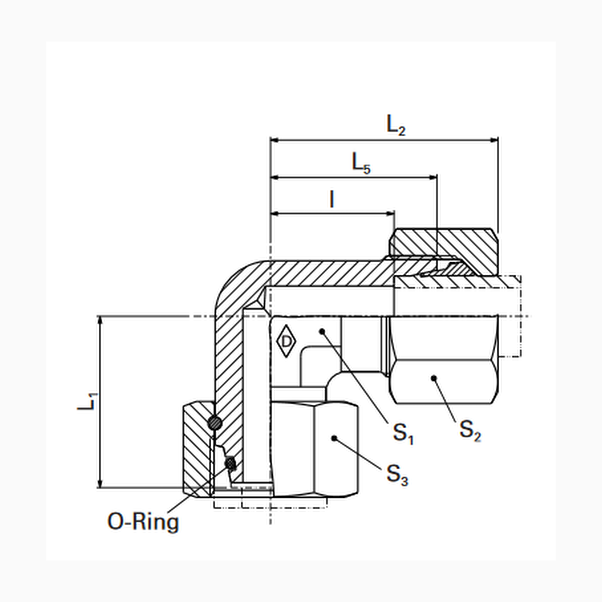

Dimensions:
L1 in mm : 32.5
L2 in mm : 36
L5 in mm : 28
I in mm : 21
S1 in mm : 19
S2 in mm : 27
S3 in mm : 27
O_Ring size : 12 x 2
