Description

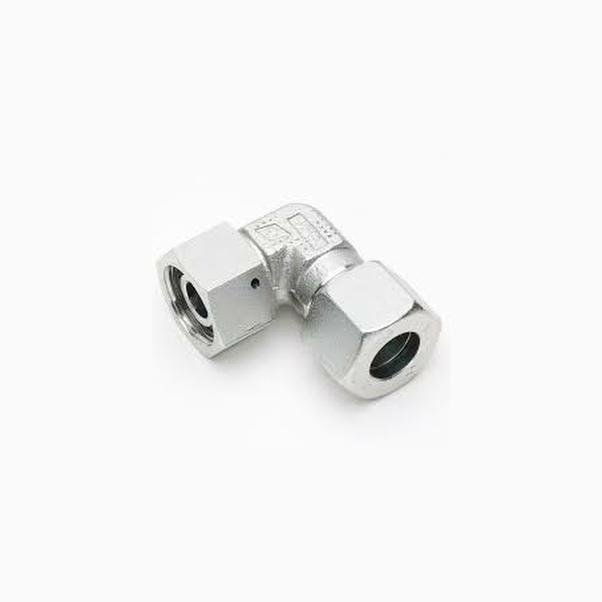

Hydraulic Adjustable Male stud Elbow 90 degrees – 16S
Specifications
For tube fitting size (light series) : 16S
With taper 24° and o-ring NBR
Nominal pressure up to 630bar

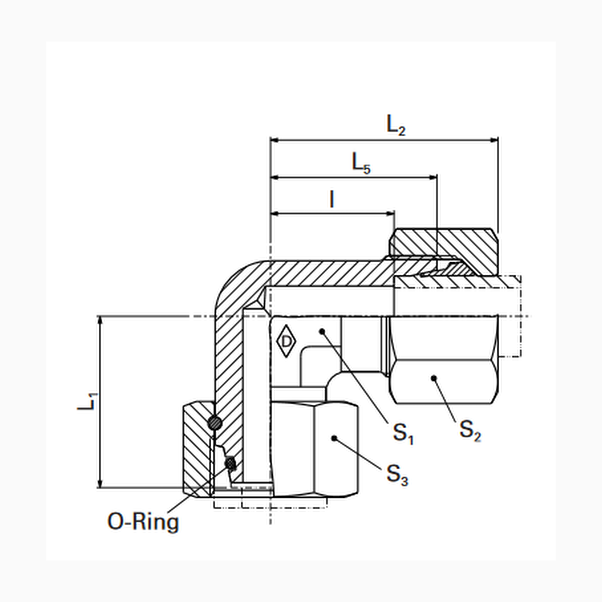

Dimensions:
L1 in mm : 36.5
L2 in mm : 43
L5 in mm : 33
I in mm : 24.5
S1 in mm : 24
S2 in mm : 30
S3 in mm : 30
O_Ring size : 14 x 2
