Description

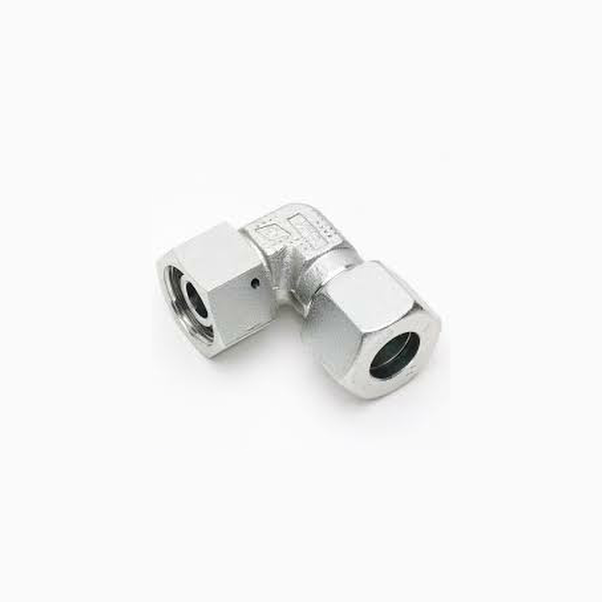

Hydraulic Adjustable Male stud Elbow 90 degrees – 20S
Specifications
For tube fitting size (light series) : 20S
With taper 24° and o-ring NBR
Nominal pressure up to 420bar

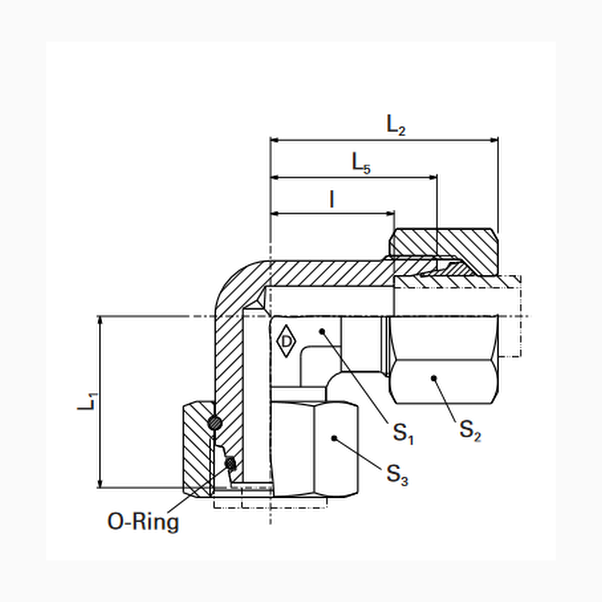

Dimensions:
L1 in mm : 44.5
L2 in mm : 48
L5 in mm : 37
I in mm : 26.5
S1 in mm : 27
S2 in mm : 36
S3 in mm : 36
O_Ring size : 17.3 x 2.4
