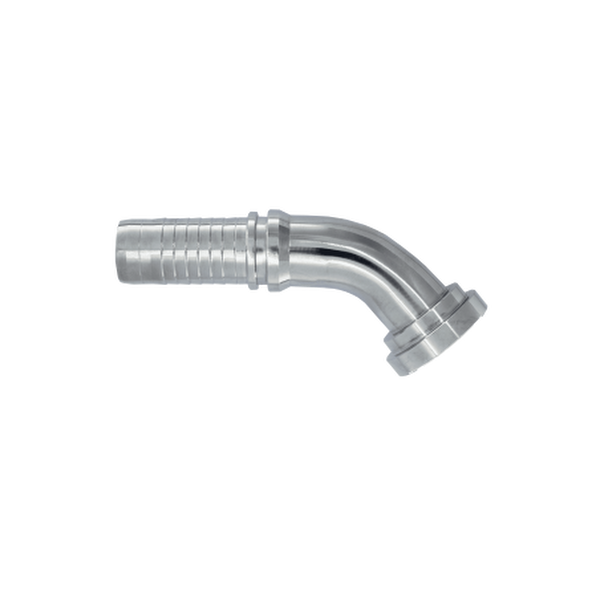

FL3450808 , Hydraulic Fitting SAE 3000 CODE 61 Elbow 45 deg FLANGE 1/2 – 1/2 Inch Hose

Description

TWO PIECE SWAGED FITTINGS UNIVERSAL SERIES FOR WIRE BRAIDED AND 4 SPIRAL HYDRAULIC HOSES

SAE 3000 CODE 61 – 45° ELBOW FLANGE

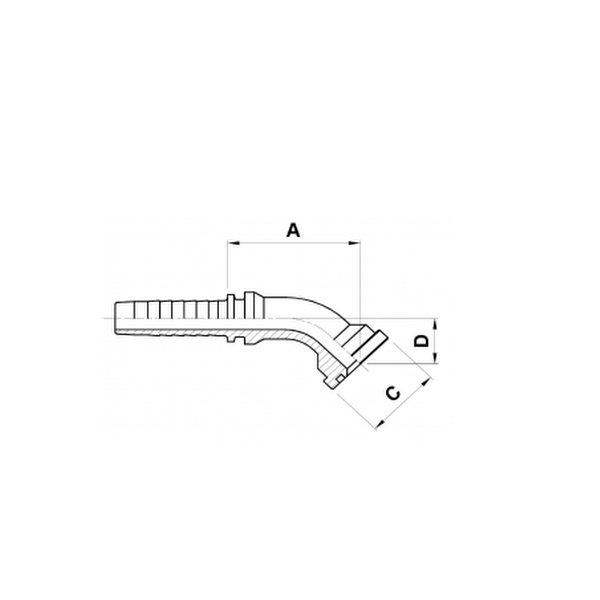

Dimensions :

Hose Bore DN 12 – 1/2 Inch – Size 8
Flange : 1/2 Inch
A : 55.2 mm
C : 30 mm
D: 21.9 mm
