FL3901212 , Hydraulic Fitting SAE 3000 CODE 61 – 90° ELBOW FLANGE 3/4 – 3/4 Inch Hose

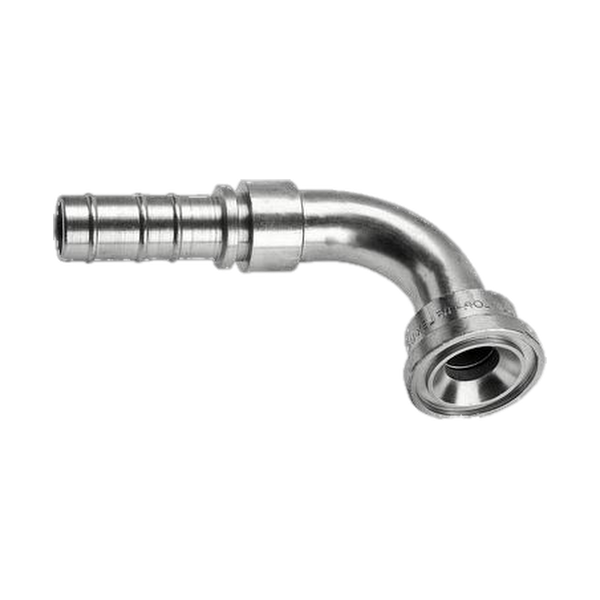

Name: FL3901212 , Hydraulic Fitting SAE 3000 CODE 61 - 90° ELBOW FLANGE 3/4 - 3/4 Inch Hose
SKU: FL3901212
Price: 4040.00 KES
Availability: InStock

KES 4,040.00 incl. VAT

Normally Stocked,

In stock (can be backordered)

Manufacturer Ref.: AX90B1212 SKU: FL3901212 Categories: hydraulic Fittings, Hydraulic hoses & fittings, Hydraulics Tags: 3/4 Inch, FL3901212

Description

TWO PIECE SWAGED FITTINGS UNIVERSAL SERIES FOR WIRE BRAIDED AND 4 SPIRAL HYDRAULIC HOSES

SAE 3000 CODE 61 90 deg Elbow FLANGE
Type : AX90B

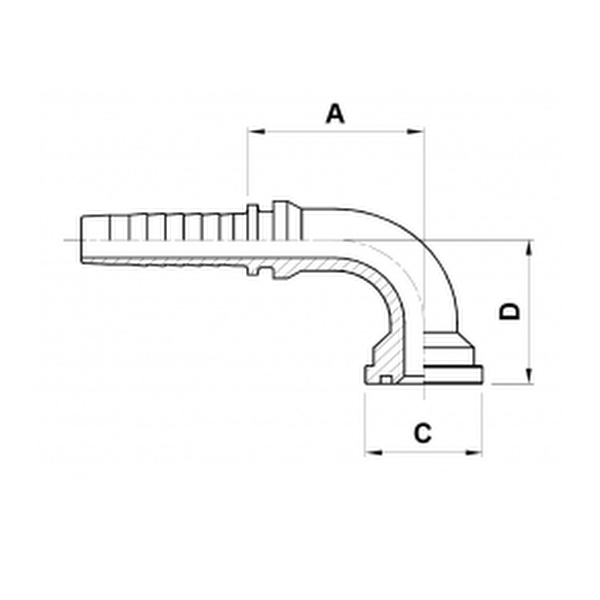

Dimensions :

Hose Bore DN 20- 3/4 Inch – Size 12
Flange : 3/4
A : 55.5 mm
C : 38 mm
D : 56.5 mm

Additional information

Hose application	1 Wire, 2 Wires, 4 Wires SP
Hose Size	3/4 Inch
Fitting Standard	SAE 3000
Fitting Size	3/4 Inch
Male or Female	Face
Shape of the fitting	90 deg
Type of Fitting	Elbow
