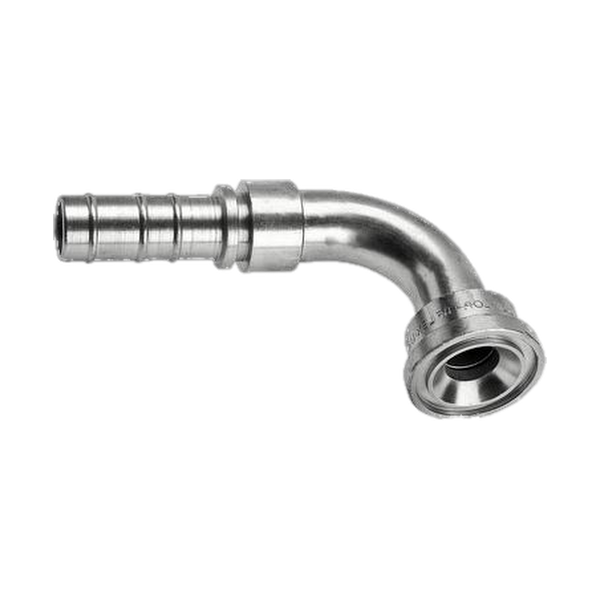

FL3901612 , Hydraulic Fitting SAE 3000 CODE 61 – 90° ELBOW FLANGE 1 – 3/4 Inch Hose

Name: FL3901612 , Hydraulic Fitting SAE 3000 CODE 61 - 90° ELBOW FLANGE 1 - 3/4 Inch Hose
SKU: FL3901612
Price: 5370.00 KES
Availability: InStock

KES 5,370.00 incl. VAT

Normally Stocked,

Only 1 left in stock (can be backordered)

Manufacturer Ref.: AX90B1216 SKU: FL3901612 Categories: hydraulic Fittings, Hydraulic hoses & fittings, Hydraulics Tags: 3/4 Inch, FL3901612

Description

TWO PIECE SWAGED FITTINGS UNIVERSAL SERIES FOR WIRE BRAIDED AND 4 SPIRAL HYDRAULIC HOSES

SAE 3000 CODE 61 90 deg Elbow FLANGE
Type : AX90B

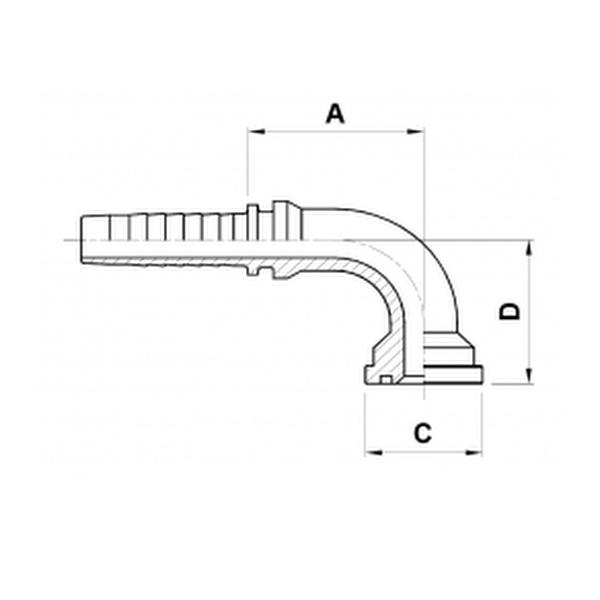

Dimensions :

Hose Bore DN 20 – 3/4 Inch – Size 12
Flange : 1
A : 55.5 mm
C : 44.5 mm
D : 58 mm

Additional information

Hose application	1 Wire, 2 Wires, 4 Wires SP
Hose Size	3/4 Inch
Fitting Standard	SAE 3000
Fitting Size	1 Inch
Male or Female	Face
Shape of the fitting	90 deg
Type of Fitting	Elbow Reducer
