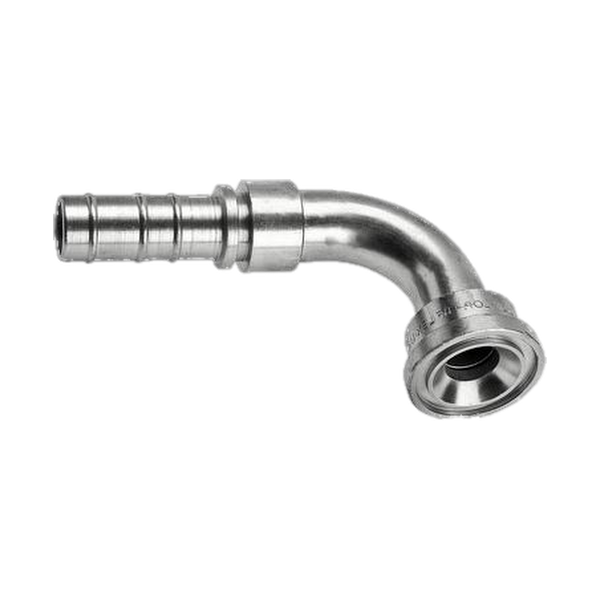

FL3902016 , Hydraulic Fitting SAE 3000 CODE 61 – 90° ELBOW FLANGE 1.1/4 – 1 Inch Hose

Name: FL3902016 , Hydraulic Fitting SAE 3000 CODE 61 - 90° ELBOW FLANGE 1.1/4 - 1 Inch Hose
SKU: FL3902016
Price: 6690.00 KES
Availability: InStock

KES 6,690.00 incl. VAT

Normally Stocked,

Only 1 left in stock (can be backordered)

Manufacturer Ref.: AX90B1620 SKU: FL3902016 Categories: hydraulic Fittings, Hydraulic hoses & fittings, Hydraulics Tags: 1 Inch, FL3902016

Description

TWO PIECE SWAGED FITTINGS UNIVERSAL SERIES FOR WIRE BRAIDED AND 4 SPIRAL HYDRAULIC HOSES

SAE 3000 CODE 61 90 deg Elbow FLANGE
Type : AX90B

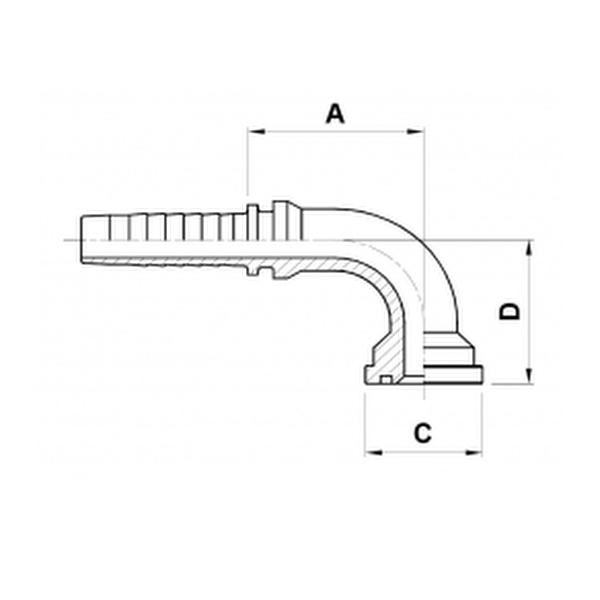

Dimensions :

Hose Bore DN 25 – 1 Inch – Size 16
Flange : 1.1/4
A : 69.9 mm
C : 50.8 mm
D : 61 mm

Additional information

Hose application	1 Wire, 2 Wires, 4 Wires SP
Hose Size	1 Inch
Fitting Standard	SAE 3000
Fitting Size	1.1/4 Inch
Male or Female	Face
Shape of the fitting	90 deg
Type of Fitting	Elbow Reducer
