Description
Specifications:

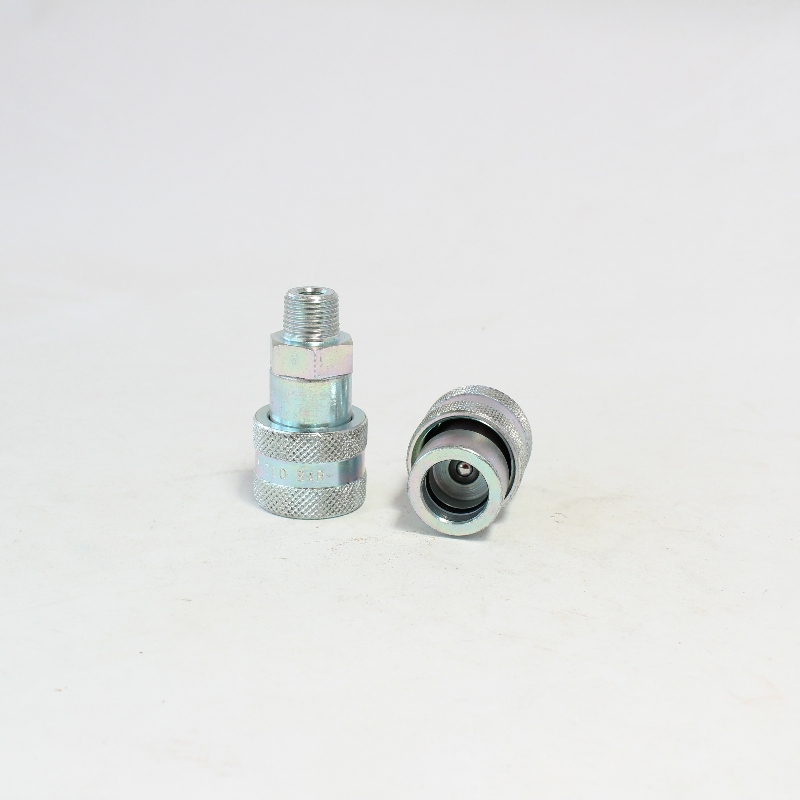

J Series includes screw to connect couplings designed to match the very high pressures used for hydraulic tools.
Screw to connect
Material: steel
Ball valve
Silver colour zinc passivation
Standard seals in nitril rubber
Back – up seals in teflon
Working temperature with standard seals: – 20° C / +110° C
Metal caps on request
Maximum working pressure bar/PSI : 700/10150
Plug reference JM25-06

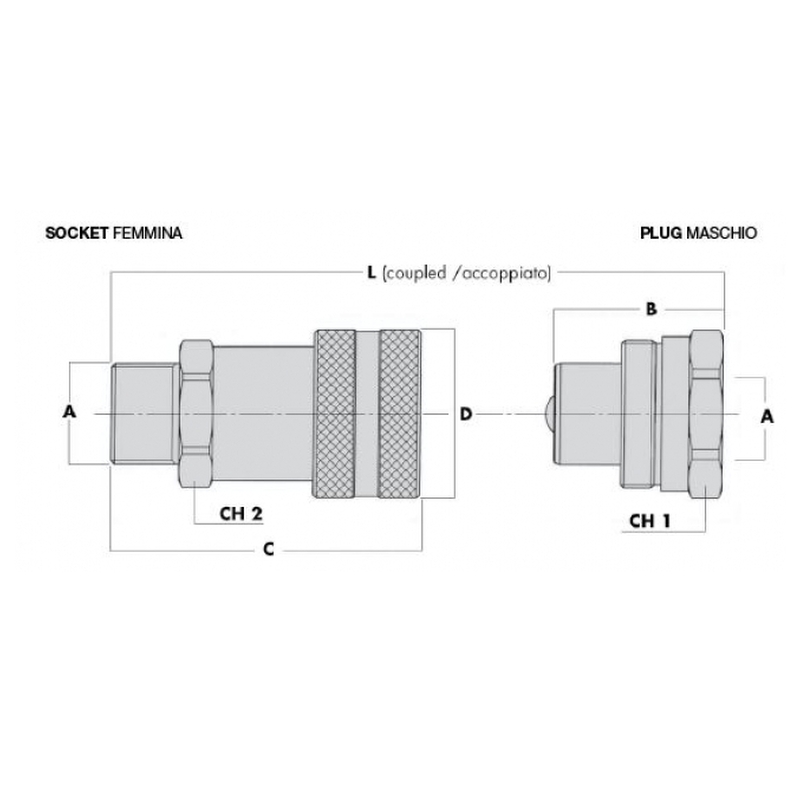

Dimensions :
Sizebase : 06
Diameter : 7 mm – 1/4 Inch
Diameter a : 3/8 Inch NPT
B in mm : 40
C in mm : 72.3
D in mm : 35
I in mm : 86.9
CH1 in mm : 32
CH2 in mm : 24
