JICF900606 , Hydraulic Elbow 90 Deg. Fitting JIC FEMALE 3/8 Inch – 3/8 Inch Hose

Name: JICF900606 , Hydraulic Elbow 90 Deg. Fitting JIC FEMALE 3/8 Inch - 3/8 Inch Hose
SKU: JICF900606
Price: 540.00 KES
Availability: InStock

KES 540.00 incl. VAT

Normally Stocked,

In stock (can be backordered)

Manufacturer Ref.: FJ91B0606 SKU: JICF900606 Categories: hydraulic Fittings, Hydraulic hoses & fittings, Hydraulics Tags: 3/8 Inch, JICF900606

Description

TWO PIECE SWAGED FITTINGS UNIVERSAL SERIES FOR WIRE BRAIDED AND 4 SPIRAL HYDRAULIC HOSES

JIC 37° FEMALE SWIVEL – 90° ELBOW

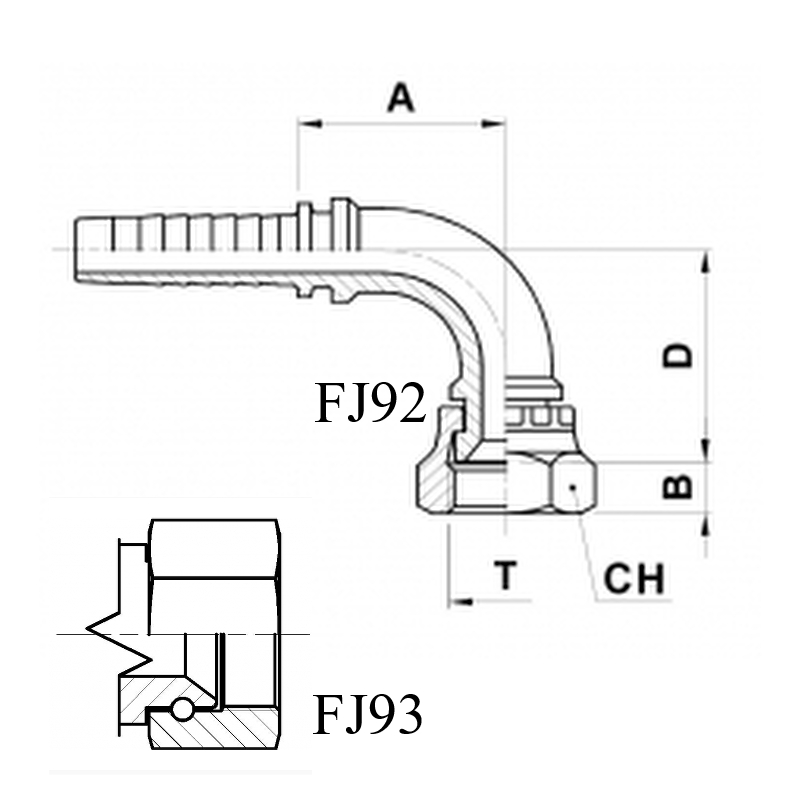

Dimensions :

Hose Bore DN 10 – 3/8 Inch – Size 6
T : 9/16 Inch – 18
A : 27.8 mm
B : 9.5 mm
D : 23 mm
CH : 17.46 mm

Additional information

Hose application	1 Wire, 2 Wires, 4 Wires SP
Hose Size	3/8 Inch
Fitting Standard	JIC
Fitting Size	3/8 IncH
Male or Female	Female
Shape of the fitting	90 deg
Type of Fitting	Elbow Reducer
