Description

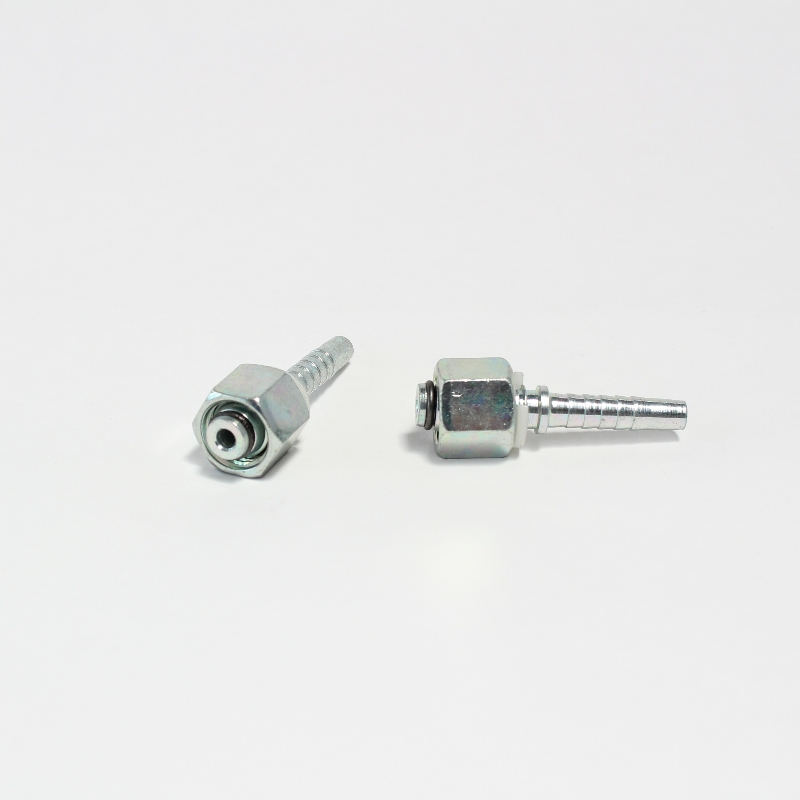

TWO PIECE SWAGED FITTINGS UNIVERSAL SERIES FOR WIRE BRAIDED AND 4 SPIRAL HYDRAULIC HOSES
METRIC LIGHT FEMALE SWIVEL (24° CONE SEAT)

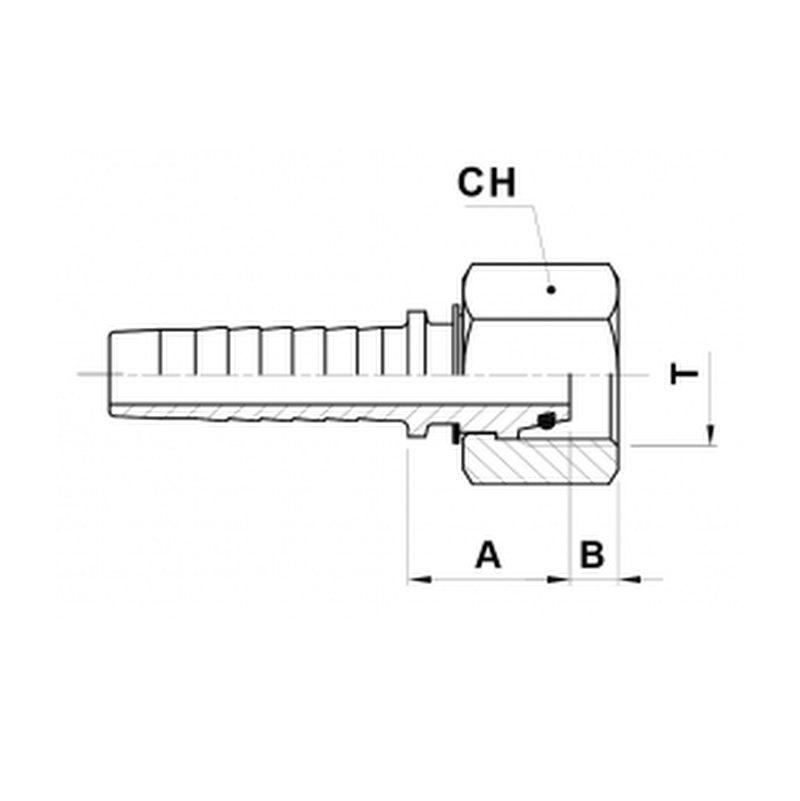

Dimensions :
Hose Bore DN 6 – 1/4 Inch – Size 04
T : M14 x 1.5
Pipe Size : L8
A : 25 mm
B : 1.5 mm
CH : 17 mm
