Description
TWO PIECE SWAGED FITTINGS UNIVERSAL SERIES FOR WIRE BRAIDED AND 4 SPIRAL HYDRAULIC HOSES

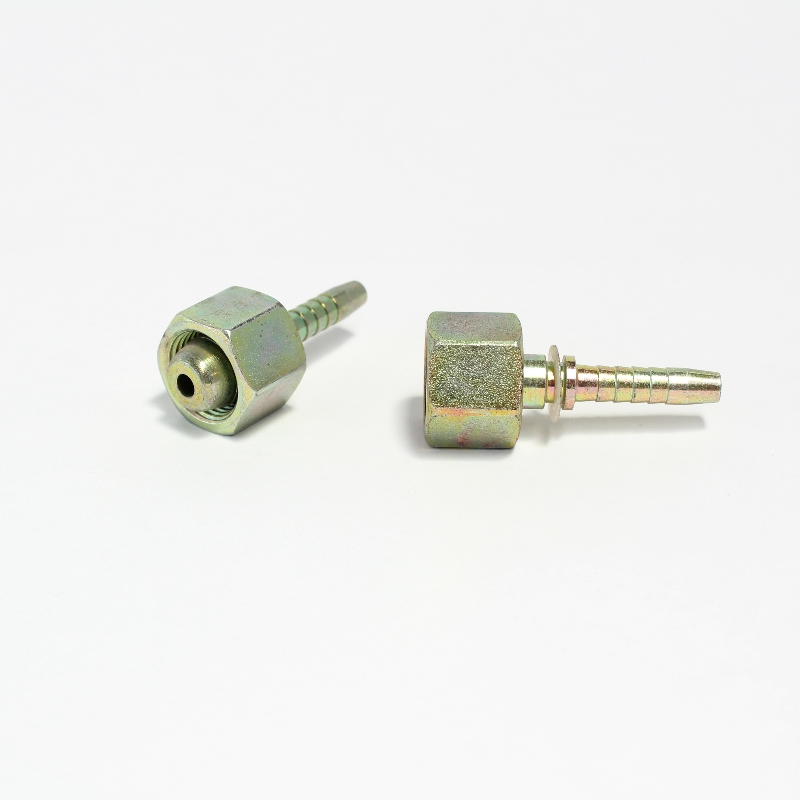

METRIC LIGHT FEMALE SWIVEL (24° CONE SEAT)

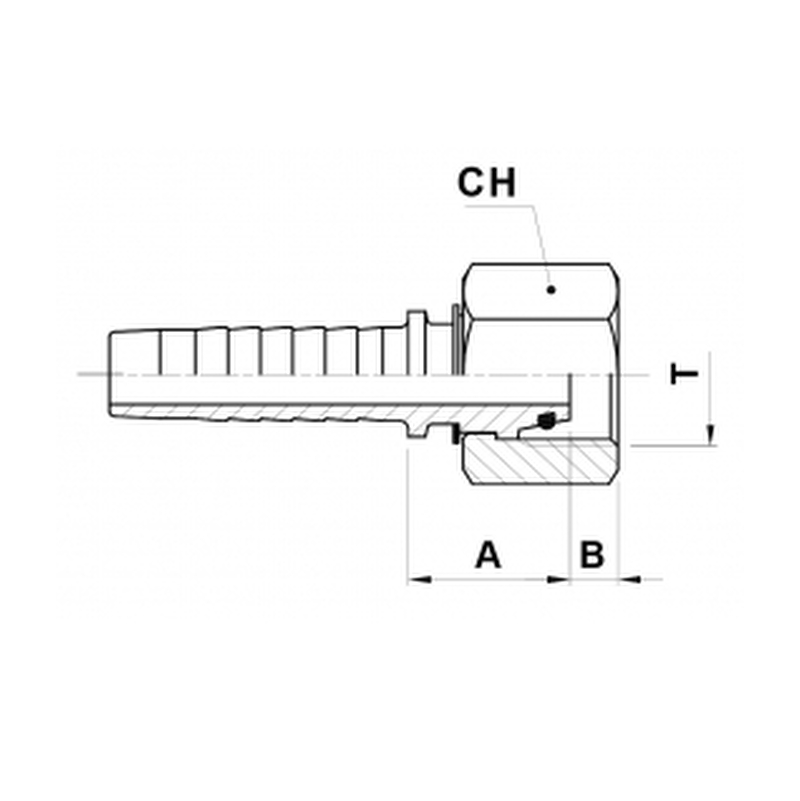

Dimensions :
Hose Bore DN 6 – 1/4 Inch – Size 04
T : M12 x 1.5
Pipe Size : L6
A : 21 mm
B : 2.6 mm
CH : 16 mm
