Description
TWO PIECE SWAGED FITTINGS UNIVERSAL SERIES FOR WIRE BRAIDED AND 4 SPIRAL HYDRAULIC HOSES

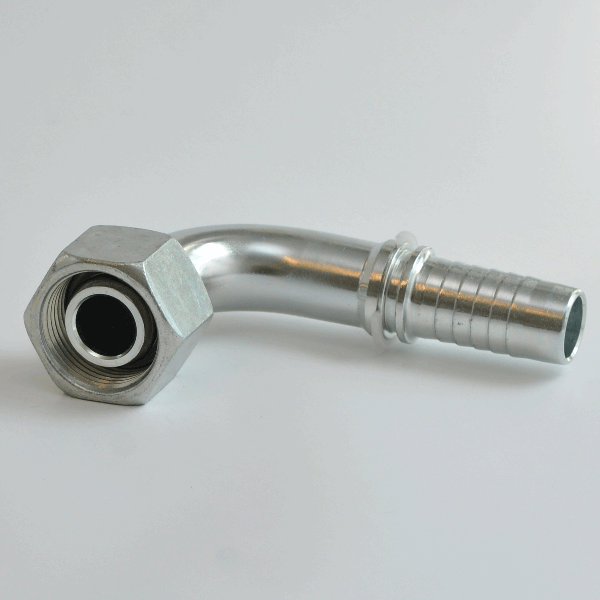

METRIC HEAVY FEMALE SWIVEL (24° CONE SEAT)

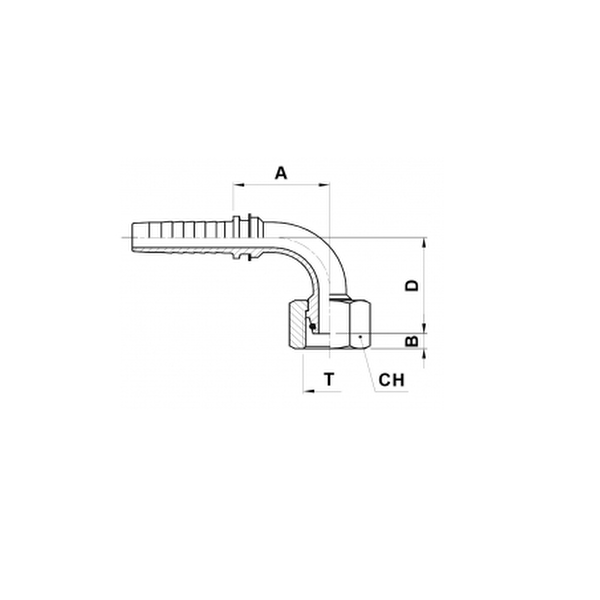

Dimensions :
Hose Bore DN 10 – 3/8 Inch – Size 6
Pipe : L12
T : M18 x 1.5
A : 30.5 mm
B : 1.5 mm
D : 36 mm
CH : 22 mm
