Description
TWO PIECE SWAGED FITTINGS UNIVERSAL SERIES FOR WIRE BRAIDED AND 4 SPIRAL HYDRAULIC HOSES

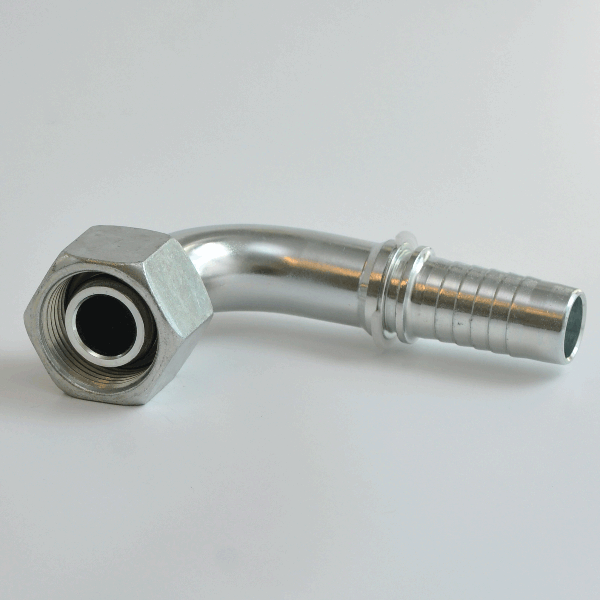

METRIC HEAVY FEMALE SWIVEL – 90° ELBOW (24° CONE SEAT)

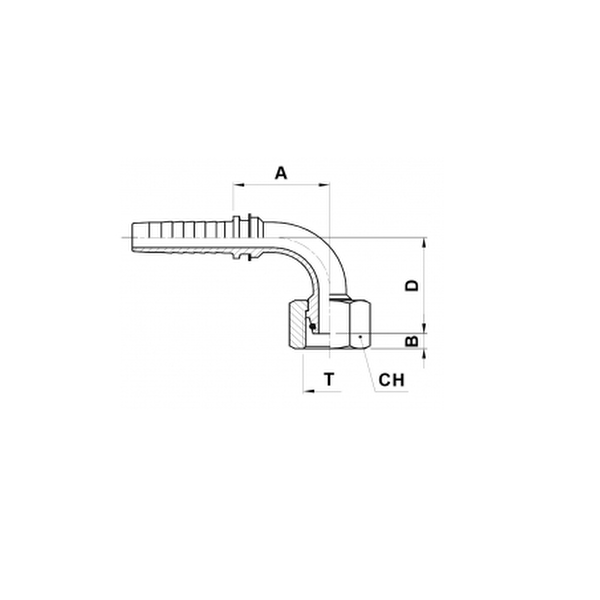

Dimensions :
Hose Bore DN 19 – 3/4 Inch – Size 12
Pipe : S25
T : M36 x 2
A : 55.5 mm
B : 3 mm
D : 60 mm
CH : 46 mm
