Description
TWO PIECE SWAGED FITTINGS UNIVERSAL SERIES FOR WIRE BRAIDED AND 4 SPIRAL HYDRAULIC HOSES

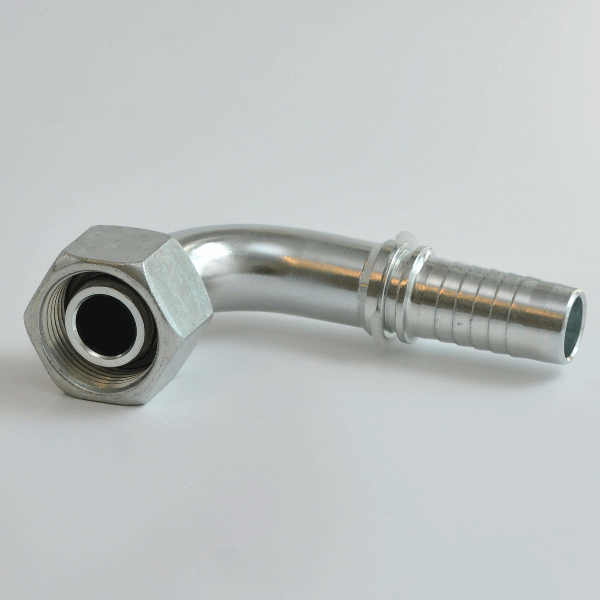

METRIC HEAVY FEMALE SWIVEL – 90° ELBOW (24° CONE SEAT)

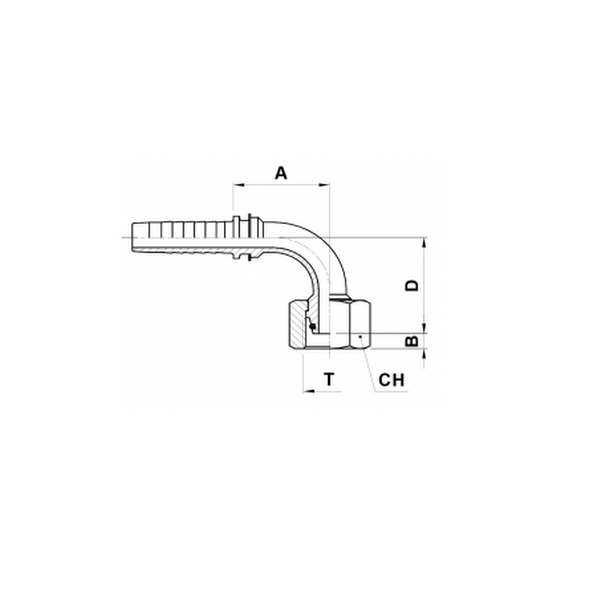

Dimensions :
Hose Bore DN 25 – 1 Inch – Size 16
Pipe : S30
T : M42 x 2
A : 74 mm
B : 6 mm
D : 75 mm
CH : 50 mm
