Description

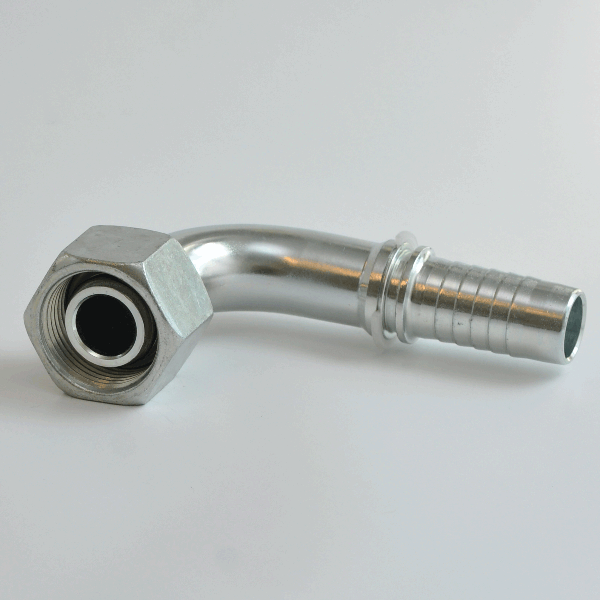

TWO PIECE SWAGED FITTINGS UNIVERSAL SERIES FOR WIRE BRAIDED AND 4 SPIRAL HYDRAULIC HOSES
METRIC HEAVY FEMALE SWIVEL (24° CONE SEAT)

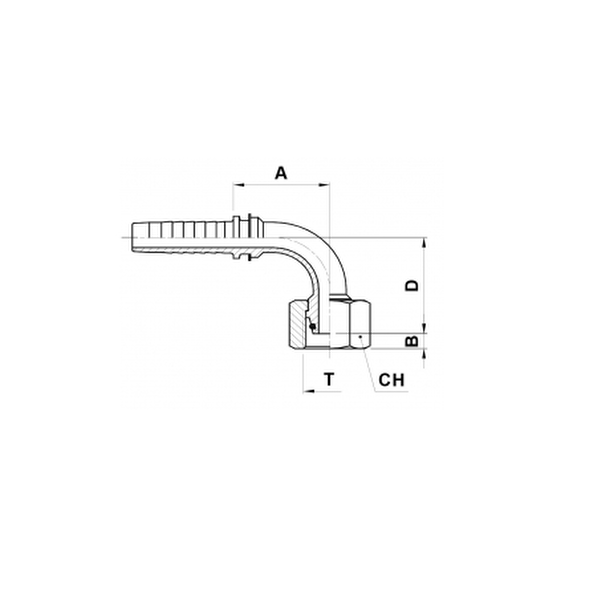

Dimensions :
Hose Bore DN 38 – 1 1/2 Inch – Size 24
Pipe : L42
T : M45 x 2
A : 103 mm
B : 3 mm
D : 95.5 mm
CH : 60 mm
