Description

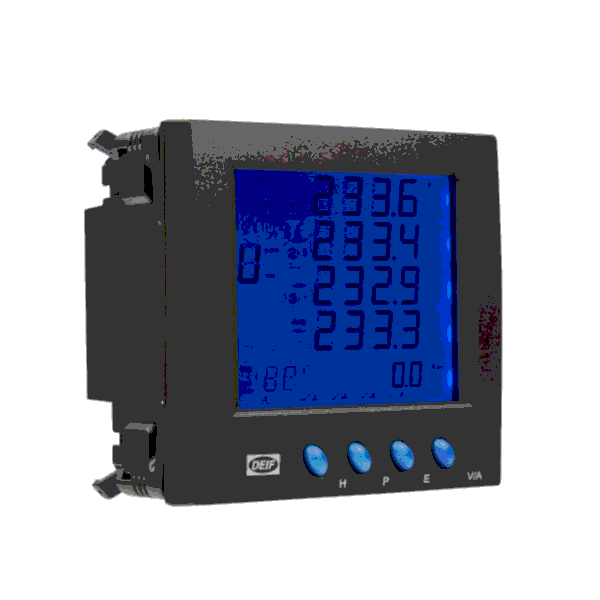

DEIF’s multi-instruments for measurements, analysis and monitoring of 3-phase electric energy distribution networks cover readings of more than 50 parameters.
The instruments have four-quad energy measurement and built-in energy counting and come with free utility software for programming and data viewing.
Ideal for sensing production from gensets/mains as the digital inputs can be utilised for genset/mains breaker feedback, thereby eliminating the need for hardwiring between breakers and the ASC.
3-phase TRMS measurements
Voltage inputs 400 L-L AC
Accuracy: 0.2 or 0.5
RS-485 Modbus communication
Digital input
Relay and digital outputs (optional)
Supply voltage:
100 to 280 V DC
85 to 264 V AC 50/60 Hz
24 to 48 V DC (optional)
Ideal for stand-alone retrofit applications
