Description
Technical Specifications
Pressure Control Range: 350 bar
Seal Material: NBR
Solenoid Option: 12 V / 2.5 A

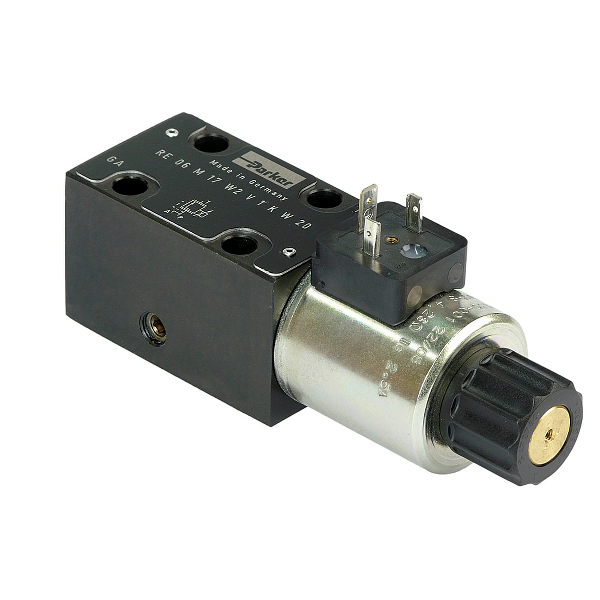

Product Series: Pressure valve
Operation Type: Direct
Actuation Type: Solenoid, proportional
Electronics Type: External
Mounting Type: Subplate mounting
Mounting Position: Unrestricted, horizontal mounting preferred
Interface Type: ISO 6264 norm
Port Connection: NG06 / CETOP 03
Port Type: 2 pressure ports, A and P
Maximum Operating Pressure: 350 bar
Pressure Control Range: 350 bar
Maximum Flow Rate: 5 L/min
Maximum Operating Temperature: 60 °C
Minimum Operating Temperature: -20 °C
Seal Material: NBR
For Fluid Type: Hydraulic oil according to DIN 51524
Body Material: Cast iron
Weight: 1.8 kg
