Description
Specifications :
AC or DC Input Voltage ac, dc
AC or DC Output Voltage dc
Input Voltage 85 → 264V ac
Output Voltage 24V dc
Output Current 5A
Power Rating 120W
Number of Outputs 1
Electrical Phase 1
Height 90mm
Width 91.2mm
Efficiency 90 % @ 115 V ac, 92 % @ 230 V ac
Minimum Temperature -40°C
Depth 90mm
Mounting Type DIN Rail Mount
Ripple And Noise 110mV Pk-Pk
MTBF 135000h
Maximum Temperature +70°C

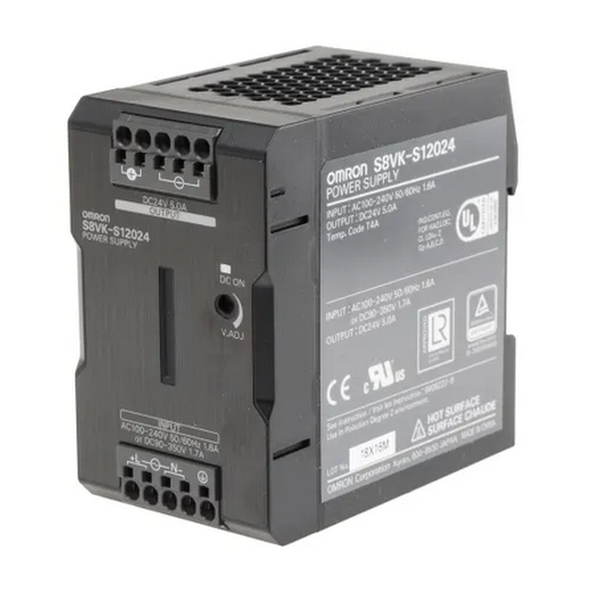

Series S8VK-S
Special Features DC Input Supported
