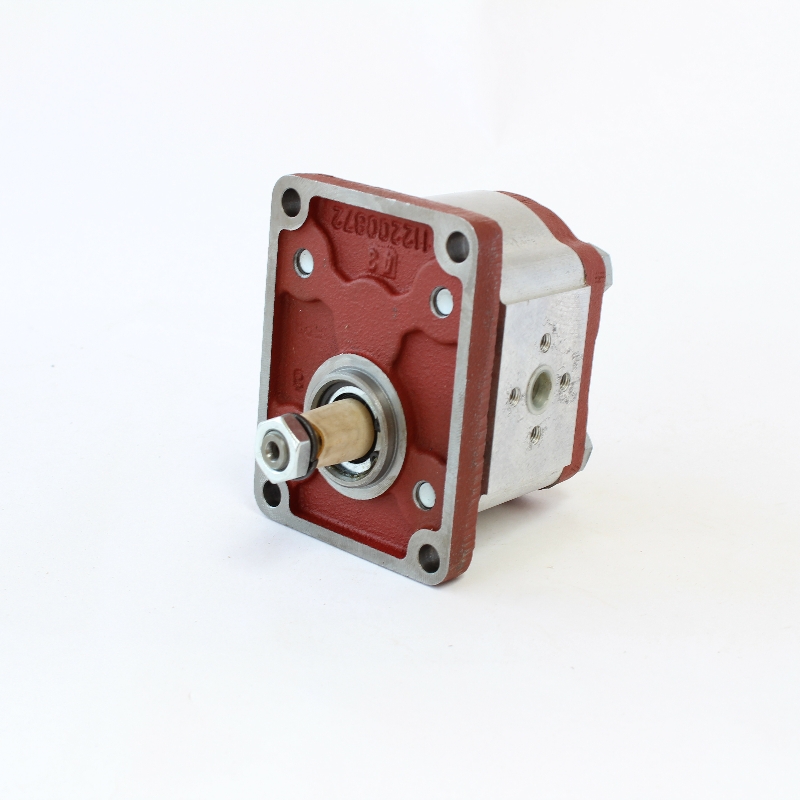

Description
•High volumetric efficiency thanks to an innovative design and an accurate control of machining tolerances.
•Axial compensation achieved by the use of floating bushes that allow high volumetric efficiency throughout the
working pressure range.
•DU bearings to ensure high pressure capability.
•12 teeth integral gear and shaft.
•Aluminium body.
•Cast iron flange and cover.
•Double shaft seals.
•Nitrile seals as standard and Viton seals in high temperature applications.
•All pumps are hydraulically tested after assembly to ensure the highest standard performance.
•Gear pumps are ideal for mobile equipment including: snow plows, light duty equipment, farm vehicles, town
trucks, cherry pickers, lift gates, utility vehicles, aerial devices, hoists, spreaders, fan drive.
•Also available Bidirectional rotation.
Technical Specifications
Displacements cmc/rev-cu.in.rev 6.5 – 0.4
Working pressure P1 bar-psi 250 – 3625
Intermittent pressure P2 bar-psi 280 – 4060
Peak pressure at P2bar-psi 300 – 4350
Max speed rpm : 4000
Min speed at P1 rpm 600
Configuration:
Type Group : 2 series
Port Size Inlet : 3/4 Inch
Port Size Outlet : Flanged With 4 x M6 Diamond Shape
Inlet Diameter : 20 mm
Outlet Diameter : 15 mm
Flange type : European (2)

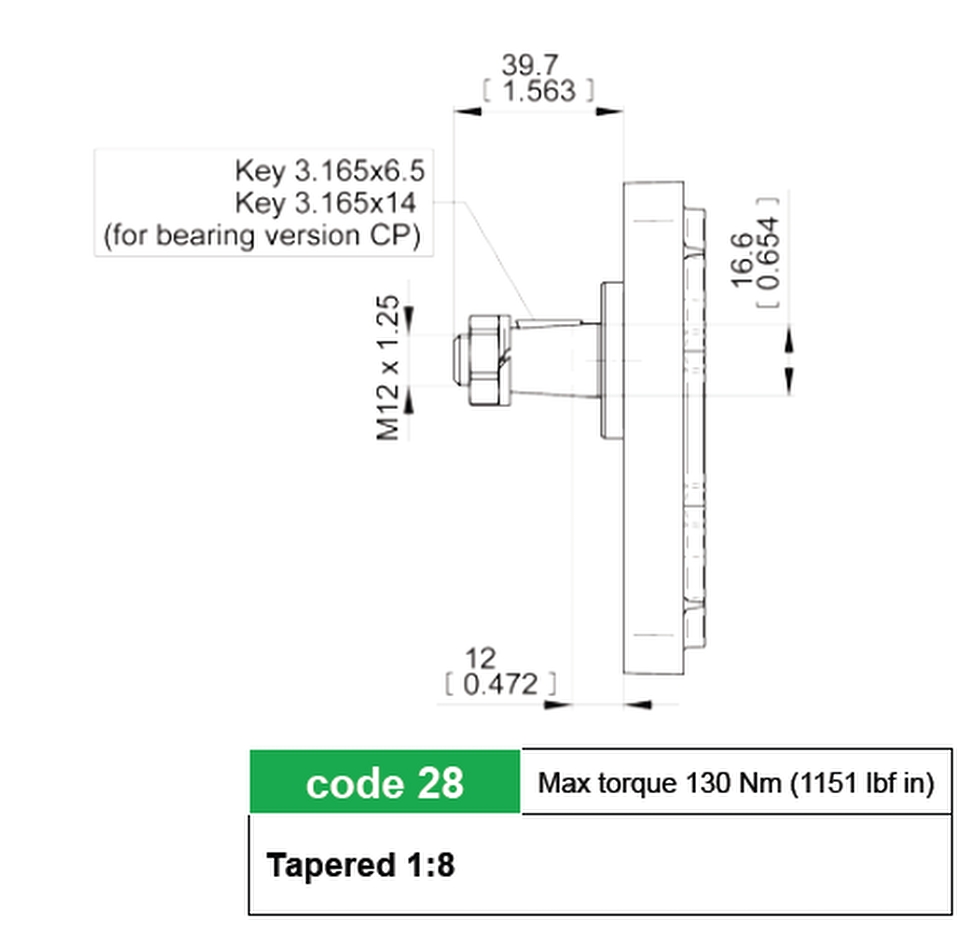

Shaft Type : 28
