Description

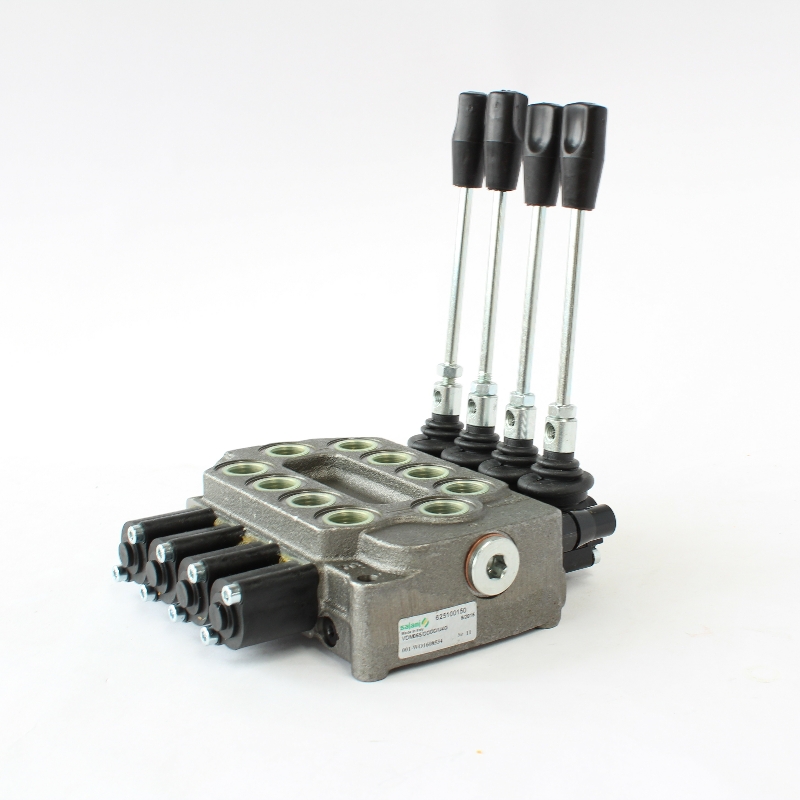

Model VDM6
Monoblock composed of mechanical sections.
Interchangeability of all the spools.
Spool construction in steel, hardened and nickel plated.
Parallel circuit with single load check valve on pressure “P” line.
Tandem circuit available only on the first working section of the 2, 3, 4, 5 and 6 working sections monoblocks.
Series circuit only on the first working section of the 2, 3, 4, 5 and 6 working sections monoblocks. Series realized inside the spool.
On-off electric control with manual override.
Emergency unloading valve.
Operating pressure bar – psi 350 – 5070
Nr of section 4
Section distance mm – in 32 – 1.26
BSP ISO 228/1 G3/8
Max flow per section l/min – gpm 60 – 16
Circuit P / S / T
Nominal Flow l/min – US gpm 45 – 12
Max. operating pressure – P bar / psi 350 – 5070
Max. operating pressure – A/B bar / psi 350 – 5100
Max. operating pressure – T bar / psi 25 – 360
