Description
USE AND OPERATION:

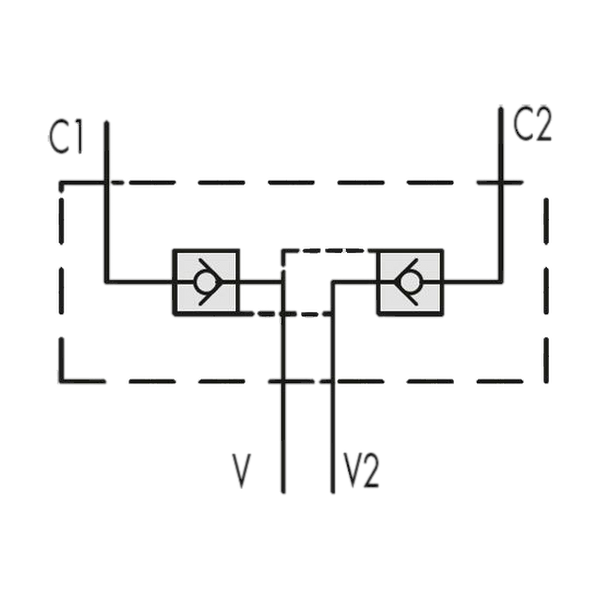

Pilot check valves are used to block the cylinder in
both directions. Flow is free in one direction and
blocked in the reverse direction until pilot pressure is
applied.
Specification

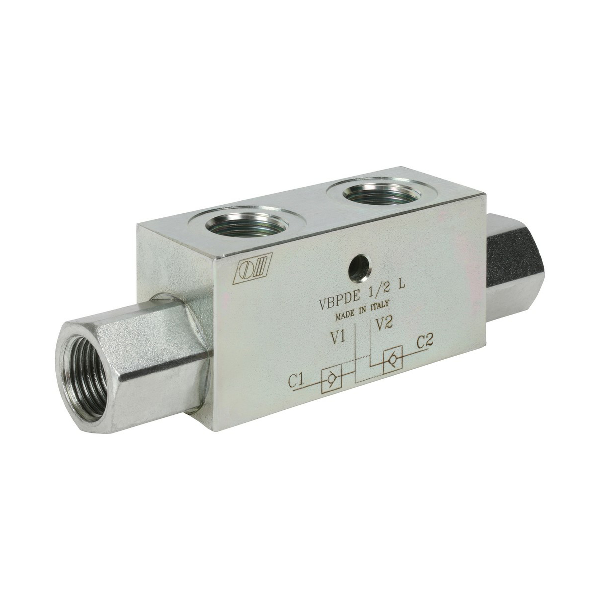

Type VBPDE
Size : 1/2 Inch
PILOT RATIO : 1:5
Max Flow LPM : 50
Max Pressure Bar : 350
Opening Pressure Min in Bars : 6
