Description
Valves used to prevent the uncontrolled descent of an actuator in the case of a hose burst. When the flow exceeds the valve setting (reaction flow), the valve will block the flow. these valves are not load holding or unidirectional restrictors.
A flow control valve is recommended downstream of the valve.
Type VUBA
Size : 1/4 Inch
Max Flow LPM : 20
Max Pressure Bar : 350

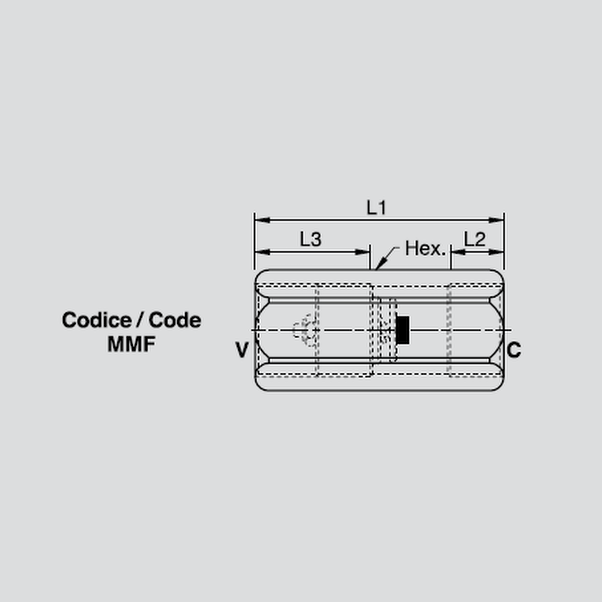

Dimensions :
L in mm : 50
L1 in mm : 12
L2 in mm : 28
L3 in mm : 29
