Description
Valves used to prevent the uncontrolled descent of an actuator in the case of a hose burst. When the flow exceeds the valve setting (reaction flow), the valve will block the flow. these valves are not load holding or unidirectional restrictors.
A flow control valve is recommended downstream of the valve.

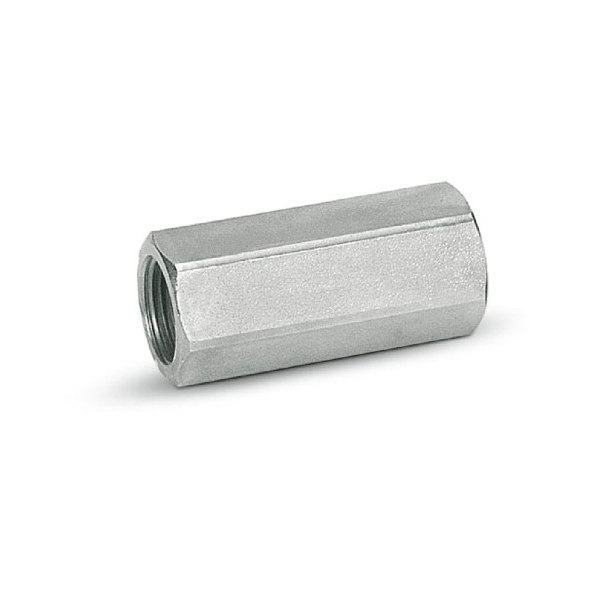

Type VUBA
Size : 3/8 Inch
Max Flow LPM : 50
Max Pressure Bar : 350

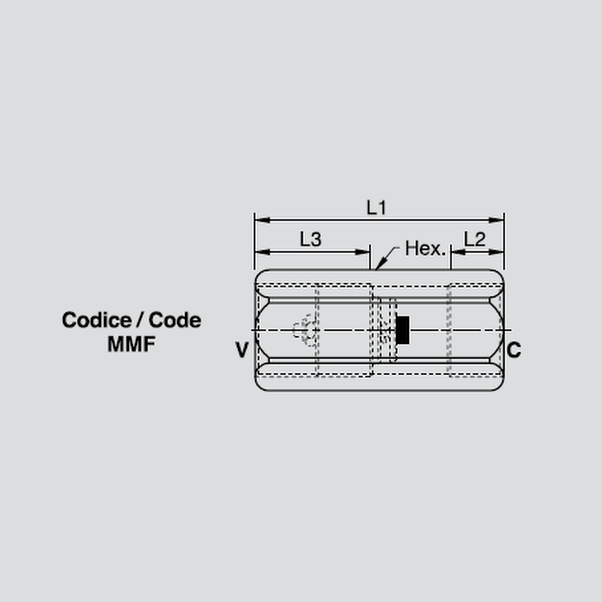

Dimensions :
L in mm : 58
L1 in mm : 13
L2 in mm : 31
L3 in mm : 24
