Description
Rotation : Clockwise
Displacment in cm3/rev : 22
Inlet : BSPP G1
Outlet : BSPP G3/4
Flow @ 1500 rpm in l/min : 31.68
Flow @ 2000 rpm in l/min : 42.24
Nominal Pressure in Bar :180

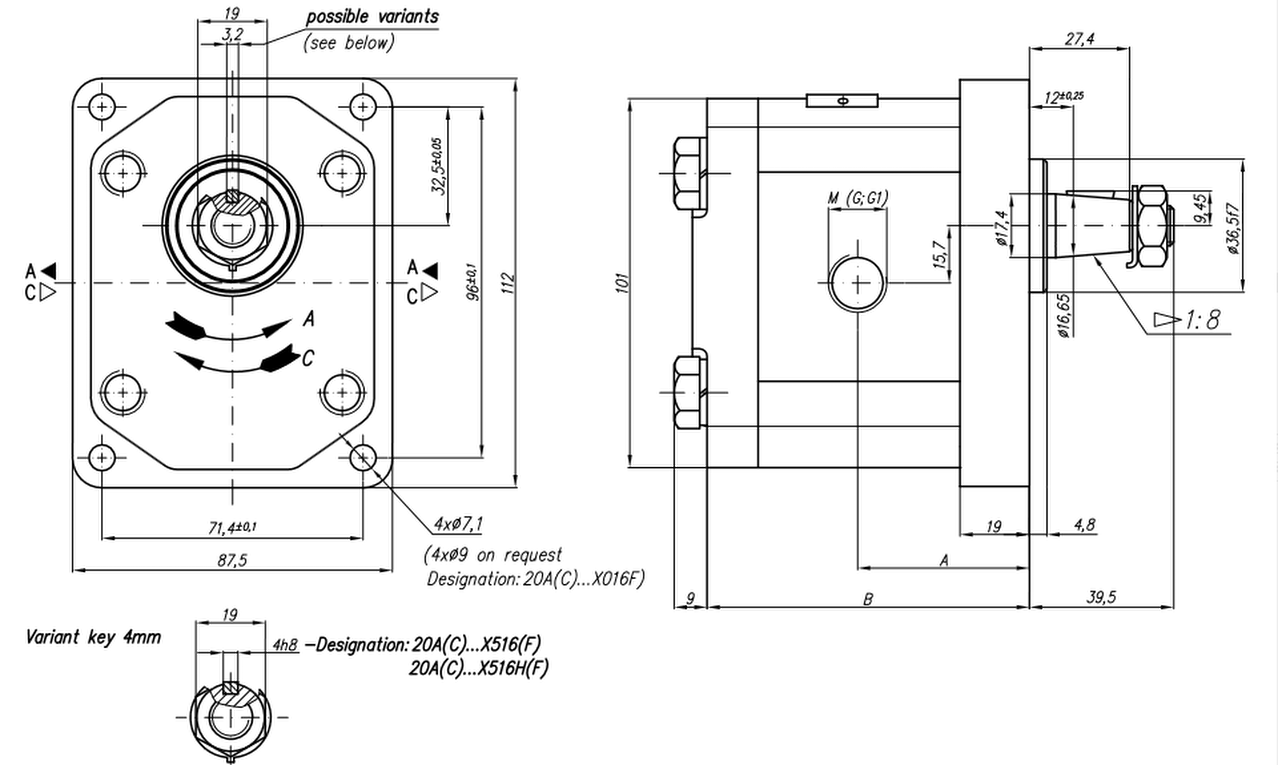

Dimensions :
A in mm : 57
B in mm : 108.5
Shaft 1:8 tapered
Fluid temperature range: -10 oC … +80 oC
Working fluid: Mineral based hydraulic oil
Viscosity: 10-100 cSt (46 cSt mineral based hydraulic oil is recommended, may vary in different climates)
Filtration: 25 µm
