Description
Hydraulic multi spiral Hose
Hydraulic Hose
Type : 4 Wires Spiral
Size : 3/4 Inch
Working Pressure Bar/ PSI : 420 /6000

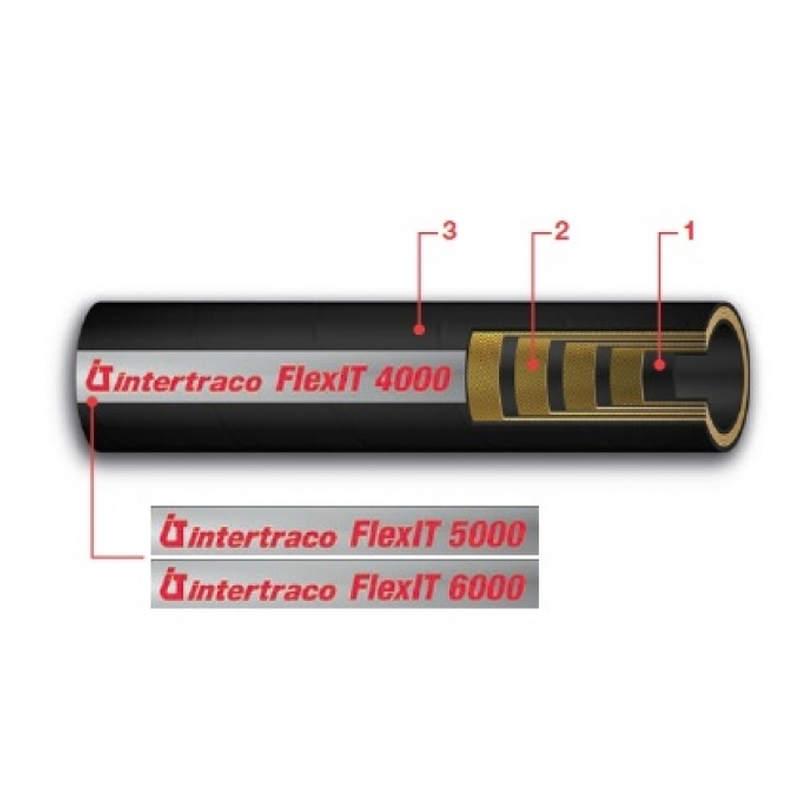

A. Construction
1 – Synthetic rubber tube
2 – Four high tensile steel wire spirals
3 – Synthetic rubber cover, MSHA flame retardant approved
B. Application
High pressure hydraulic system with extreme high pressure peaks for use with hydraulic oils, both mineral and biological, polyglycol base oils, water-oil, emulsions and water
C. Temperature range
Hydraulic oils: -40°C to +100°C (-40°F to +212°F) occasional peaks up to +125°C (+250°F) Polyglycol base oils, water-oil emulsions and water: up to +85°C (+185°F)
