Description

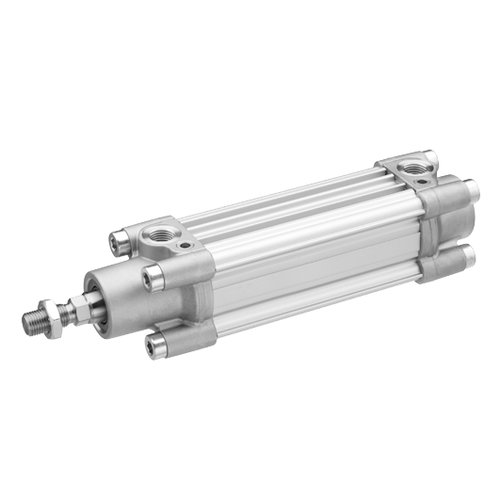

Pneumatic Cylinder Rexroth Adventics
Technical Data
Piston Diameter : 32 mm
Stroke : 320 mm
Threaded port size : G1/8
Piston rod thread : M10 x 1.25
Theoritical Force at 6 bars
Pull stroke N : 435
push stroke N : 505
Cushioning lenght mm : 11.5
Standard ISO 15552
Working pressure 1.5–10 bar
Ambient temperature range –20 °C to +80 °C
MediumCompressed air, lubricated or non-lubricated
Materials
Piston rod Stainless steel, smooth-rolled
Cylinder barrel Anodized aluminium
End covers Die-cast aluminium
