Description

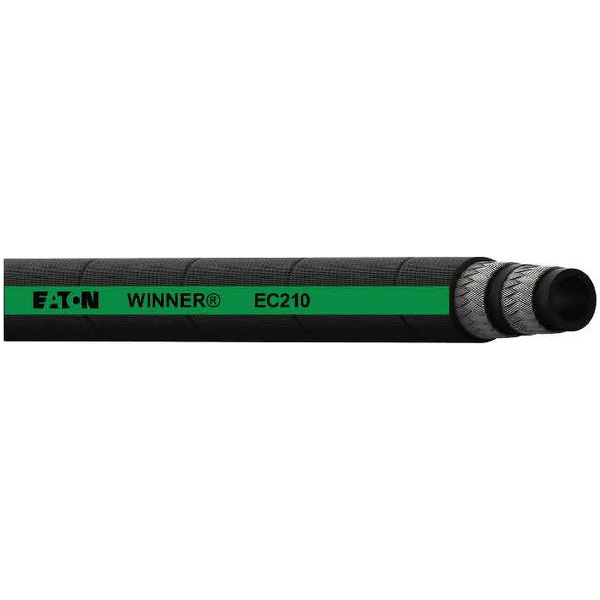

Hydraulic Hose
Eaton Winner Hoses
Type : 2 Wires
Size : 3/4 Inch
Hose ID mm/inch : 19 – 0.75
Hose OD mm/inch : 30.1 – 1.19
Working Pressure Bar/ PSI : 215/3125
Min. Burst Pressure Bar/PSI : 860 – 12500
Min Bend radius mm/inch : 240 – 9.45
Weight kg/m – lbs/ft : 0.93 – 0.62
Construction
1 – Synthetic rubber tube;
2 – One high tensile steel wire braids;
3 -Synthetic rubber cover, MSHA flame retardant approved.
Application
Hydraulic oils, both mineral and biological
Polyglycol base oils, water/oil emulsions and water based fluid.
Temperature range Hydraulic oils: -40°C to +100°C (-40°F to +212°F)
