Description

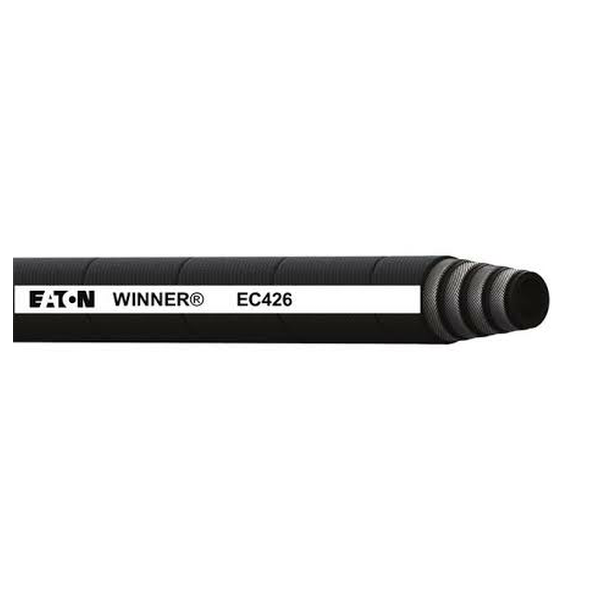

Hydraulic Hose
Eaton Winner Hoses
Type : 4 Wires
Size : 5/8 Inch
Hose ID mm/inch : 15.9 – 0.62
Hose OD mm/inch : 29 – 1.14
Working Pressure Bar/ PSI : 350/5100
Min. Burst Pressure Bar/PSI : 1400 – 20400
Min Bend radius mm/inch : 250 – 9.84
Weight kg/m – lbs/ft : 1.04 – 0.70
Construction
1 – Synthetic rubber tube;
2 – One high tensile steel wire braids;
3 -Synthetic rubber cover, MSHA flame retardant approved.
Application
Hydraulic oils, both mineral and biological
Polyglycol base oils, water/oil emulsions and water based fluid.
Temperature range Hydraulic oils: -40°C to +100°C (-40°F to +212°F)
