Description

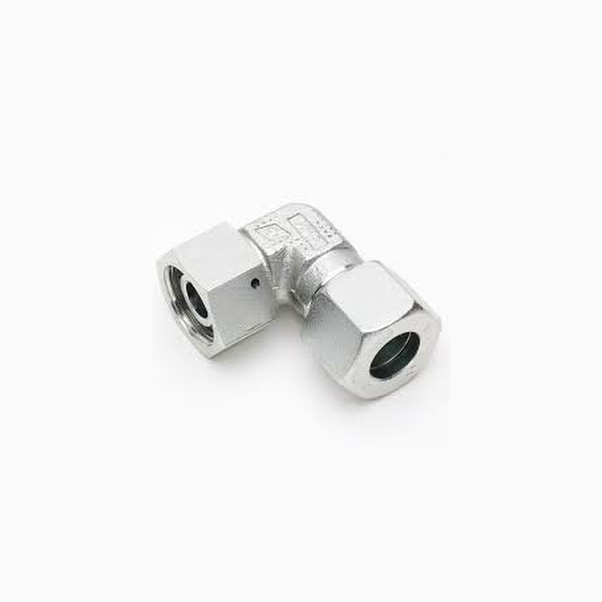

Hydraulic Adjustable Male stud Elbow 90 degrees – 22L
Specifications
For tube fitting size (light series) : 22L
With taper 24° and o-ring NBR
Nominal pressure up to 250bar

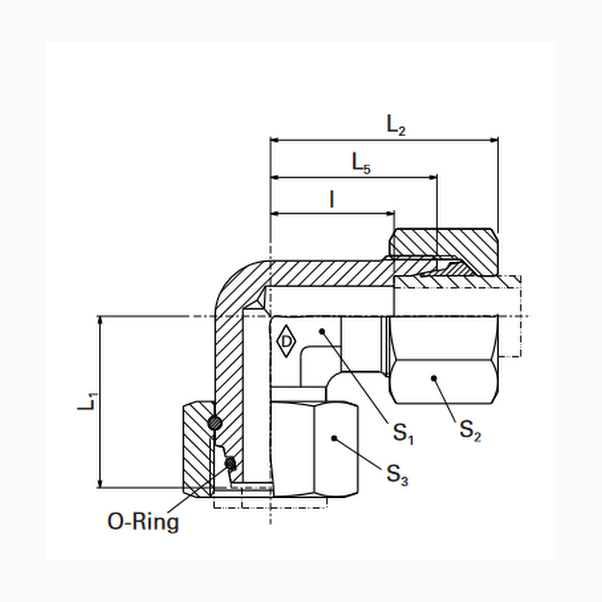

Dimensions:
L1 in mm : 38.5
L2 in mm : 44
L5 in mm : 35
I in mm : 27.5
S1 in mm : 27
S2 in mm : 36
S3 in mm : 36
O_Ring size : 20 x 2
